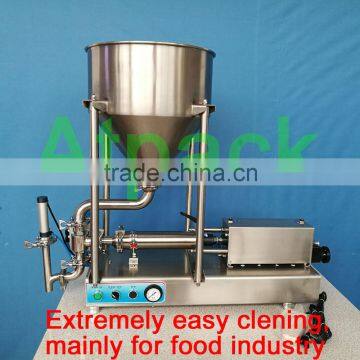

Easy cleaning food grade cream filling machine (disassemble machine within 2 minutes)

Our Volumetric Piston Fillers are used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.

The filler can be designed to fill any kind of liquid or cream, from water to grease.(carbonated drinks or aerosol products aside)

Option functions:

Heating, mixing, heating&mixing;

anti-forming nozzle, anti-splashing nozzle, hand-held nozzle, adjustable nozzle, double nozzles machine, multi-nozzle machine, lengthened nozzle(for packing machine);

easy-cleaning, ex-proof machine , automatic material transport system, standing type filling, high viscosity material filling, extremely large/small filling volume, small filling line etc.

Just tell us your requirements, we will design and manufacture a most suitable machine for you!

Diferent machine types:

For different containers:

For different materials:

For different filling shapes:

Machine details:

Non-standard machines:

Features:

· Approximate Speed: 5 - 38 pcs/min(depending on filling volume, operator speed, product density, draw length, a fill speed, among others)

· All Parts in Contact with Product are Food Grade (SS 316)

· Stainless Steel Construction(SS 304, 1.5mm thickness)

· Electrical-pneumatic Operation

· Fluoropolymer elastomer O-ring System

· Adjustable Volumetric Piston System with Numeric Reference Display

· Piston Feed Speed Adjustment

· No-drip Option Included and Installed

· Extremely Accurate (+/- 0.5%)

· Extremely Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Extremely Easy to Operate

· Quick Connect/Disconnect Pneumatic Fittings.

Parameters:

VLF series and VCF series share the parameter above.

VLF series is suitable to fill low density liquids (0 - 3,000 cp ----- viscosity roughly from pure water to shampoo)

VCF series is suitable to fill low to high-density liquids (3000 - 20,000 cp ----- viscosity roughly from shampoo to shampoo peanut butter)

We also have machine for product more viscous than peanut butter.

We frequently test customer's products and applications. Please contact us to evaluate your application and describe our simple testing parameters. Due to the variety of solutions we test at any given time, we ask that you kindly refrain from sending product until we discuss our testing process.
