Home > Products > Solar charge controller > Green Energy Mini PWM Solar Charge Controller 40A, 50A, 60A, 80A, 90A, 100A

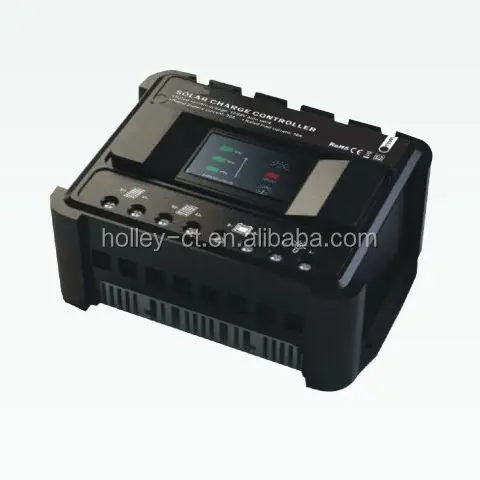

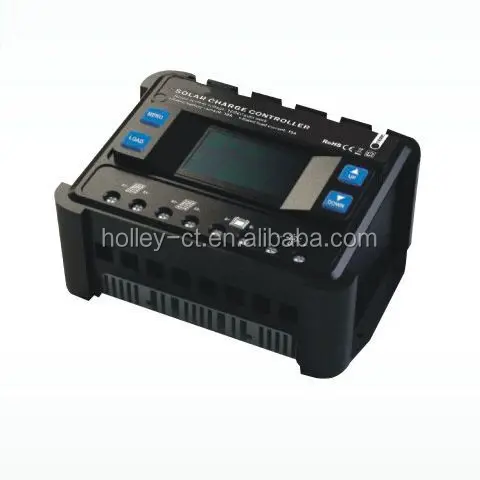

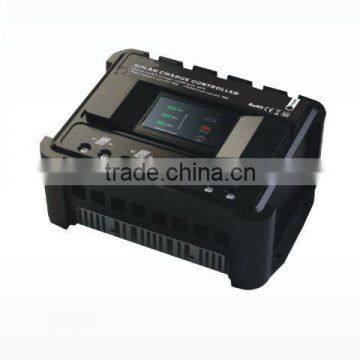

Green Energy Mini PWM Solar Charge Controller 40A, 50A, 60A, 80A, 90A, 100A

FOB Price

US$ 75 - 250 / Piece

100 Pieces(Min. Order)

Port SHANGHAI / NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HOLLEY
Model Number	HCP 12/24/48-40/50/60/80/90/100	Application	Solar System Controller
Rated Voltage	Other, 12/24/48Vdc	Maximum Current	40A, 50A, 60A, 80A, 90A, 100A

Product Description

Green energy mini PWM solar charge controller 40A, 50A, 60A, 80A, 90A, 100A.

Features:
Overcharge protection.
Short circuit protection (automatic restoration).
Easy to install and use.
Save energy and electricity consumption.
Environment friendly, lower-cost.
Suitable for polytype battery.
Thunder protection.
Reverse polarity connection protection.

Detailed Images

Technical data

Model	HCP 12/24-40	HCP 12/24-50	HCP 12/24-60	HCP 12/24-80	HCP 12/24-90	HCP 12/24-100
	HCP 48-40	HCP 48-50	HCP 48-60	HCP 48-80	HCP 48-90	HCP 48-100
Charging Mode	PWM
Nominal System Voltage	12/24,&48V
Rated Charge Current	40A	50A	60A	80A	90A	100A
Rated Discharge Current	40A	50A	60A	80A	90A	100A
Max PV Input Power	600W@12V 1200W@24V 2400W@48V	750W@12V 1500W@24V 3000W@48V	900W@12V 1800W@24V 3600W@48V	1200W@12V2400W@24V 4800W@48V	1300W@12V 2600W@24V 5200W@48V	1500W@12V 3000W@24V 6000W@48V


LCD Screen Display	Optional
Equalizing Charge Voltage	14.4V/28.8V/57.6V
Boost Charge Voltage	14.0V/28.OV/56.0V
Float Charge Voltage	13.8V/27.6V/55.2V
Over Voltage Protection	15.5V/31.0V/62.0V
Low Voltage Disconnect	11.0V/22.0V/44.0V
Low Voltage Recovery	12.6V/25.2V/50.4V
Self Consumption	<5% of rated power
Temper. Compensation	-3mV/℃/2V
Ambient Temper. Range	-25 to 50℃
Protection Level	IP 22
Battery Type	GEL/AGM/Solar Storage Battery, etc.

PWM Solar charger controller 5A, 10A, 15A, 20A, 25A, 30A.

Rated Voltage: 12/24/48Vdc
Maximum Current: 5A, 10A, 15A, 20A, 25A...

30A 12V/24V/48V lithium battery solar charge controller.

.Rated Voltage: 12/24V/48V
Maximum Current: 30A

30A mppt hybrid solar charge controllers MPPT-30AD.

Rated Voltage: 12/24V/48V
Maximum Current: 30A

Certifications

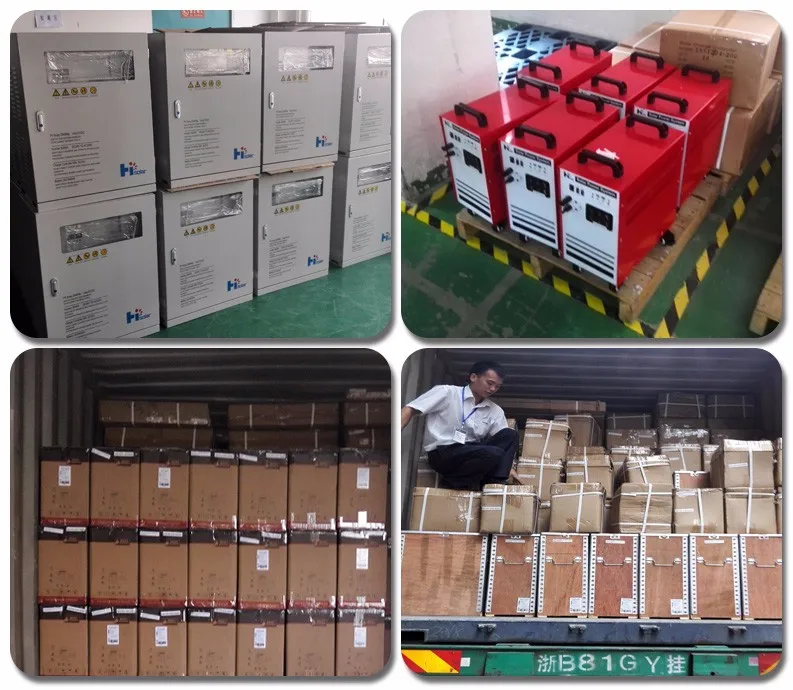

Packing&Delivery

Our Company

HOLLEYINTL, is a top-brand enterprise in China, is a professional diversified operating company specializing in international trade and overseas projects. We have been engaged in export and import of utility meters, new energy and natural resource products as well as overseas engineering EPC and investment. Meanwhile, our company is also the inverter,controller manufacturer; PV system integrator and photovoltaic power plant investment operator.

We actively carrying out the internationalization strategy and extending the domestic and overseas markets, have made great progress in the field of new energy and completed a number of photovoltaic system projects in Ethiopia, Uganda, Palestine as well as other countries, and initially formed the core competence both in PV system integration capabilities and customer service network.

As one of our global strategies, we are aiming to be an global excellent integrated expert in new energy field. We specialize in providing design, supply, installation, commissioning, after-sales service and project finance support of overseas new energy projects and our products have been spread all over Africa, Asia and South America.
