Home > Products > Solar inverter > 3000W/24V DC TO AC Pure Sine Wave Solar Inverter

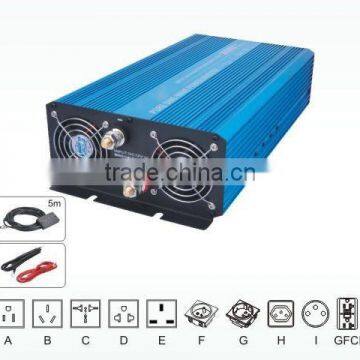

3000W/24V DC TO AC Pure Sine Wave Solar Inverter

FOB Price

US$ 409 - 471 / Piece

25 Pieces(Min. Order)

Port SHANGHAI/NINGBO
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HOLLEY
Model Number	P3000U-241/242	Output Power	Other, 6000W
Output Type	Single	Size	45.5 x 23 x 10.8 cm
Weight	7200g	Input Voltage	12/24/48Vdc
Output Voltage	110/220Vac	Type	DC/AC Inverters
Output Frequency	50/60HZ	Output Current	-

Product Description

3000W/24V DC TO AC pure sine wave solar inverter.

Products Features:
1. High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
2. Earth Fault Protection: The unit shutdown when the load has electric leakage.
3. Soft start : smooth start-up of the appliances.
4. Pure sine wave output waveform : clean power for sensitive loads.
5. AC output identical to, and in some cases better than the power supplied by your utility
6. Cooling fan in the inverter is thermally activated and comes on when the inverter becomes warm,and turns off automatically after the inverter has cooled.
7. Low total harmonic distortion : below 3%
8. Two LED indicators on the front panel shows the working and failure state.

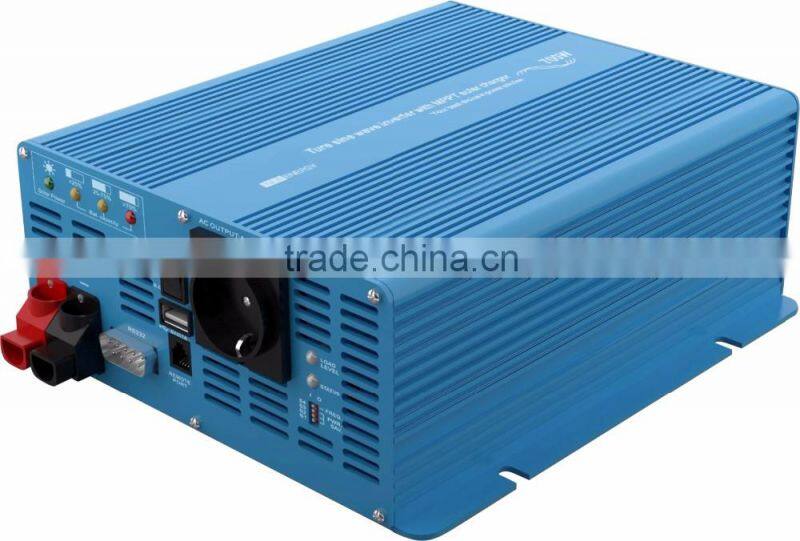

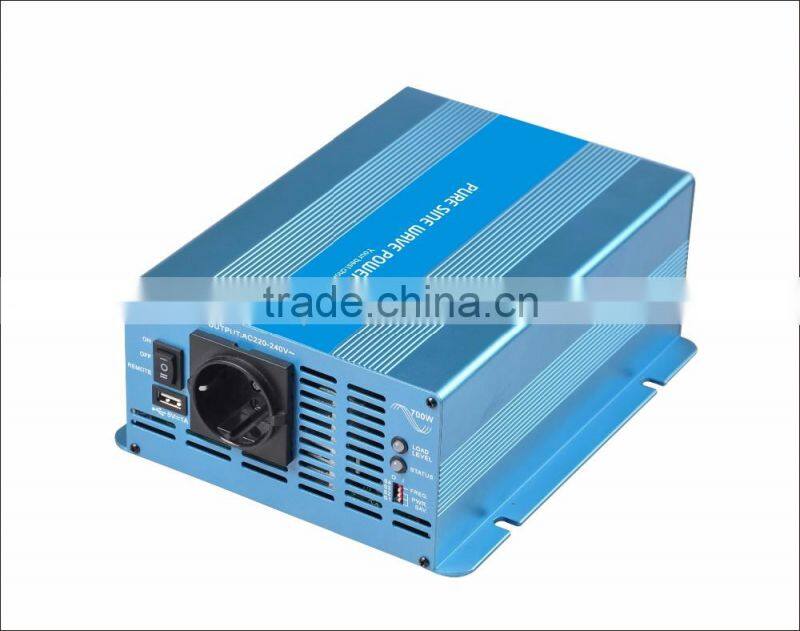

Detailed Images

Technical data

Model	P3000U-121	P3000U-122	P3000U-241	P3000U-242
Rated power	3000W
Surge power	9000W (Few seconds)
Output voltage	110V	230V	110V	230V
Output frequency	50/60Hz ±3%
No load current draw	≤1.5A
Output waveform	Pure Sine Wave
USB port	5V, 500mA (Optional)
Remote control	Optional
Protection function	Bat. Low voltage alarm & Shut down, Over temperature, Over voltage, Short circuit, Reverse polarity, Earth leakage, Overload
Input voltage	12V		24V
Replaceable fuse	30A x 12		15A x 12
Cooling fan	By load control
Dimension	45.5 x 23 x 10.8 cm
Net weight/Unit	7200g
QTY/Ctn	2PCS
Dimension/Ctn	53 x 32 x 40.5 cm
Certificates	CE-EMC/LVD, RoHS, E-Mark

Packing & Delivery

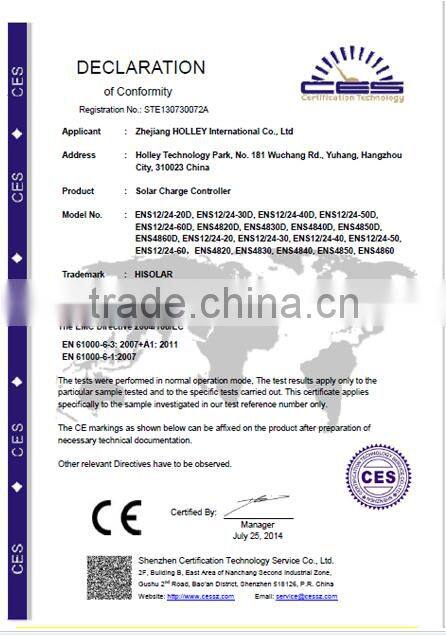

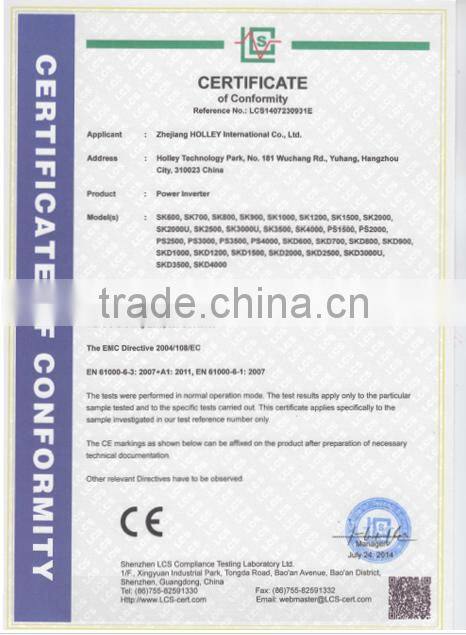

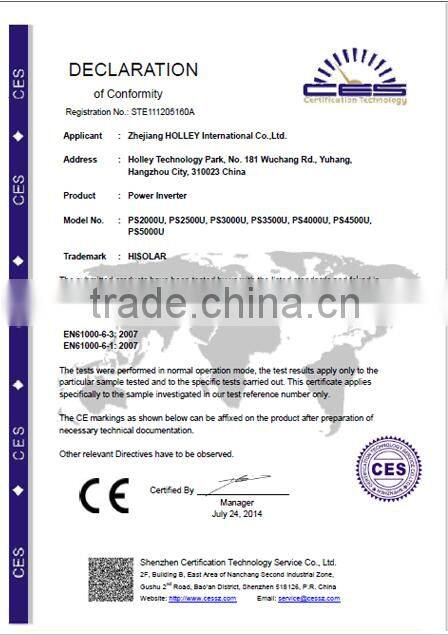

Certifications

2000W PURE SINE WAVE DC TO AC POWER INVERTER.

Rated power: 2000W

Surge power: 6000W

2500W PURE SINE WAVE DC TO AC POWER INVERTER.

Rated power: 2500W
Surge power: 7500W

4000W PURE SINE WAVE DC TO AC POWER INVERTER.

Rated power: 7000W
Surge power: 8000W

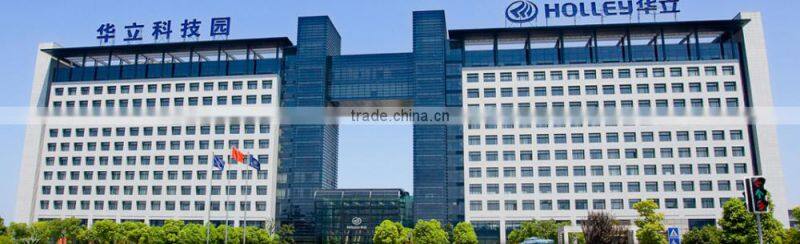

Our Company

HOLLEYINTL, is a top-brand enterprise in China, is a professional diversified operating company specializing in international trade and overseas projects. We have been engaged in export and import of utility meters, new energy and natural resource products as well as overseas engineering EPC and investment. Meanwhile, our company is also the inverter,controller manufacturer; PV system integrator and photovoltaic power plant investment operator.

We actively carrying out the internationalization strategy and extending the domestic and overseas markets, have made great progress in the field of new energy and completed a number of photovoltaic system projects in Ethiopia, Uganda, Palestine as well as other countries, and initially formed the core competence both in PV system integration capabilities and customer service network.

As one of our global strategies, we are aiming to be an global excellent integrated expert in new energy field. We specialize in providing design, supply, installation, commissioning, after-sales service and project finance support of overseas new energy projects and our products have been spread all over Africa, Asia and South America.
