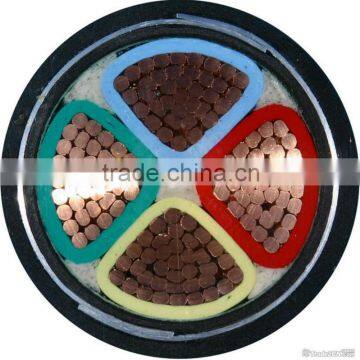

0.6/1kV --3.6/6kV xlpe insulated power Cable (Cu/PVC/STA/PVC)

FOB Price

US$ 300 - 4,000 / Kilometer

2 Kilometers(Min. Order)

Port Qingdao or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Sanhe
Model Number	Cu/PVC/STA/PVC	Insulation Material	PVC
Type	Low Voltage	Application	Construction
Conductor Material	Copper	Jacket	PVC

Product Description

0.6/1kV --3.6/6kV xlpe insulated power Cable (Cu/PVC/STA/PVC )

Specification:

1. The rated voltage of cable should fit for the running of the system.

2. The max running temperature of the conductor of cable is 70, the max temperature of the conductor of cable should less then 150 when short circuit. (less then 5 second)

3. Then min bending diameter should larger then two times of the diameter of the cylinder for cable bending test.

The detail and technical data of the products:

Type, name and usage

Type	Name	Usage
VV	PVC insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force
VLV
VY	PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VLY
	PVC insulated steel belt armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV23	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV23
VV32	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force
VLV32
VV33	PVC insulated fine steel wire armored PE sheathed power cable	Can be laid at indoor, underground .Cable can under take mechanism outside force
VLV33
VV42	PVC insulated thick steel wire armored PE sheathed power cable	Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force
VLV42
VV43	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force
VLV43
