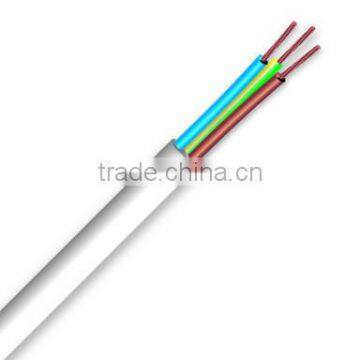

H03VV-F cable,power cable,PVC flexible cable

Specifications

H03VV-F cable,power cable,PVC flexible cable

Application

These cable types are especially suited to use on small appliances with low mechanical stress and for connection for light household appliances,
e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc., as far as this cable is admitted to the relevant
specifications of the equipment.
These cables are not permitted to use with cooking or heating apparatus.
Cables with cross-section 0,75 mm² are not suitable for outdoor use or use of industrial or farmer machineries

Installation

Open air.

Marking
• n = number of cores
• s = section in mm²
• G = with Green-Yellow
• x = without Green-Yellow

Standards
International HD 21.5;
IEC 60227-53
National NF C 32-201/5

BS6004

DIN VDE 0281 part 5

Construction characteristics
Outer sheath PVC (Polyvinyl chloride)
Conductor flexibility Flexible class 5
Conductor material Bare copper

Electrical characteristics
Rated Voltage Uo/U (Um) 300 / 300 V

Mechanical characteristics
Mechanical resistance to impacts Low
Cable flexibility Flexible

Usage characteristics
Max. conductor temperature in service 70 °C
Short-circuit max. conductor temperature 150 °C
Operating temperature, range -5 .. 60 °C
Weather resistance Good
Flame retardant C2, NF C 32-070
Chemical resistance Accidental
Water proof Accidental
