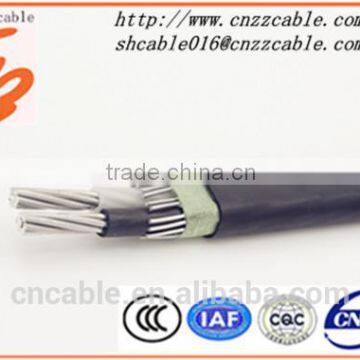

Fine Al Wire Closely Spaced Conductors Flat Concentric Cable

FOB Price

US$ 120 - 5,000 / Kilometer

5 Kilometers(Min. Order)

Port Qingdao or others
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Henan, China		Brand Name	Sanhe
Model Number	Concentric Cable		Insulation Material	Other, PE/XLPE
Type	Low Voltage		Application	Overhead
Conductor Material	Aluminum		Jacket	Other, XLPE/PE

Product Description

Fine Al Wire Closely Spaced Conductors Flat Concentric Cable

Product Description

Concentric Cable

ASTM 600/1000v
Core	AWG	Structure Size (mm)							Copper cable (kg/km)
		Conductor		Insulation	Concentric conductor		Outer sheath
		Single wire		XLPE	Single wire		UV-PVC
		No.	Dia.	Thick	No.	Dia.	Thick	Dia.
1	16	7	0.49	1.14	39	0.321	1.14	6.82	81.46
1	10	7	0.98	1.14	34	0.511	1.14	8.67	172.04
1	8	7	1.23	1.14	25	0.643	1.14	9.68	221.58
1	6	7	1.55	1.14	25	0.813	1.14	10.98	160.50
1	4	7	1.96	1.14	27	1.020	1.14	12.62	509.26


IEC 60502-1 IEC 60228 600/1000v
Size (mm2)	Structure Size mm								Copper cable (kg/km)
	Concuctor			Insulation	Concentric conductor		Outer sheath
	Single wire		Dia.	PVC	Single wire		UV-PVC
	No.	Dia.	Dia.	Thick	No.	Dia.	Thick	Dia.	(kg/km)
10	7	1.35	4.05	1.55	20	0.85	1.4	11.79	301.55
16	7	1.7	5.1	1.55	32	0.85	1.4	12.84	431.7
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02	647.46

16	7	1.7	5.1	1.55	26	1.13	1.4	13.42	244.16
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02	307.3
35	19	1.53	7.65	1.65	27	1.35	1.6	16.99	390.15

Certifications

Company Information

Zhengzhou Sanhe Cable Co.,Ltd. is founded in 2008 . It located in Henan , China .

We specialize in producing and exporting all kinds of wires and cable.

We have professional engineers and advanced technical staff in this line.

We have built favorable bussiness relationship with many customers from different markents .

We product the wire and cable according to many standards such as : GB,IEC,ASTM,DIN,JIS,NF,BS,AS/NZS.

Trade$Market

Our Office

Our factory

Our Exhibition

Workshop

working line

Testing

Packaging & Shipping

Packing

Shiping

FAQ

No. 1, —— How do your products quality? —— Our products are carried out 100% inspection .

No. 2, —— What should we do , if the Product problems occur after we use it ?

—— We have 12 months quality guarantee after delivery .
No. 3, —— What about your company type ? —— manufacturer .

No.4, —— What about your company's engineer ?

—— We have chief engineer over 26 years experience about cables .
