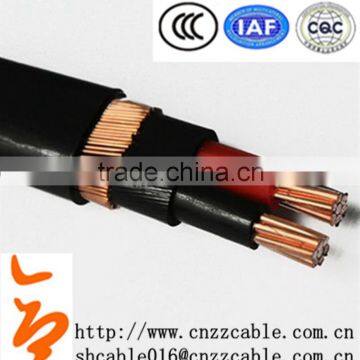

Coppeer Conductor Armoured Two Core Parallel Concentric Cable
- Qingdao or Tianjin
- T/T Credit Card
You May Like
-
Tight Squeeze-type Al Core Copper Conductor Double-core Concentric Cables
-
Best Al/Copper Concentric Cable with ASTM UL Standard
-
Best Quality Copper Concentric Cable
-
Copper/Aluminum Conductor Concentric Cable With Manufacturer
-
flame retardant concentric cable
-
600v 8000 series aluminum alloy concentric cable
Product Details
| Place of Origin | Henan, China | Brand Name | Sanhe | |
| Model Number | Concentric Cable | Insulation Material | Other, PVC/XLPE | |
| Type | Low Voltage | Application | Overhead | |
| Conductor Material | Copper | Jacket | Other, XLPE/PVC |
Product Description
Coppeer Conductor Armoured Two Core Parallel Concentric Cable
Concentric Cable
ASTM 600/1000v | |||||||||
Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||
Conductor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | XLPE | Single wire | UV-PVC | ||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||
1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 |
1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 |
1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 |
1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 |
1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC 60502-1 IEC 60228 600/1000v | |||||||||
Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||
Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | Dia. | PVC | Single wire | UV-PVC | |||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||
10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 |
16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 |
|
|
|
|
|
|
|
|
|
|
16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 |
35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 |
| |||||||||
Zhengzhou Sanhe Cable Co.,Ltd. is founded in 2008 . It located in Henan , China .
We specialize in producing and exporting all kinds of wires and cable.
We have professional engineers and advanced technical staff in this line.
We have built favorable bussiness relationship with many customers from different markents .
We product the wire and cable according to many standards such as : GB,IEC,ASTM,DIN,JIS,NF,BS,AS/NZS.
Trade$Market
Our Office
Our factory
Our Exhibition
working line
Testing
Packing
Shiping
No. 1, —— How do your products quality? —— Our products are carried out 100% inspection .
No. 2, —— What should we do , if the Product problems occur after we use it ?
—— We have 12 months quality guarantee after delivery .
No. 3, —— What about your company type ? —— manufacturer .
No.4, —— What about your company's engineer ?
—— We have chief engineer over 26 years experience about cables .
