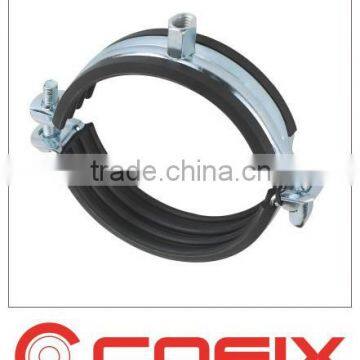

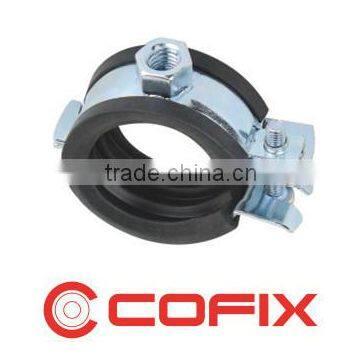

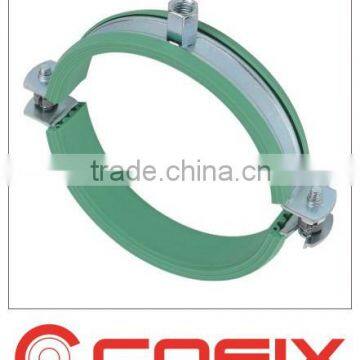

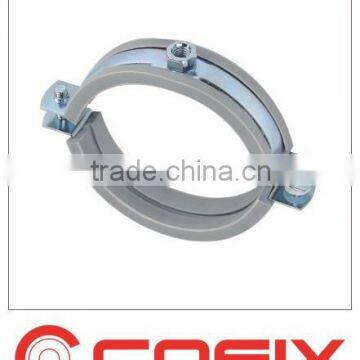

Welding Pipe Clamp

Specifications

For fastening:

Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.

Properties:

Avantages:

1.Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.

2.It prevents the action of electrolysis.

3.Two-screw pipe clamps satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.

4.Screws have a combined head with a cross and a slot.

5.The pipe clamp is checked regarding noise protection according to DIN 4109.

Application:

1.Used for mounting of pipes to the walls (vertical / horizontal),ceilings and floors

2.For Suspending Stationary Non-Insulated Copper Tubing Lines

3.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.

4.Side screws are protected against loss during assemble with the help of plastic washers

Usage:

1.steel pipes

2.cast iron pipes

pper pipes

4.glass pipes

5.plastic pipes

Field:

1.sanitary and heating installations

2.gas distribution systems

3.air conditioning systems

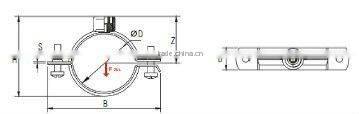

Technical data:

Installation:

Insert pipe,press together clamp parts,tighten locking screws.
