Home > Products > Two screws pipe clamp without rubber > 823 Two Screw Plug 3G Welded Nut Pipe Clamp
823 Two Screw Plug 3G Welded Nut Pipe Clamp
US$ 0.4 - 0.9
/ Piece
1000 Pieces(Min. Order)
- xiaolan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 823 | Usage | Pipe Clamp | |
| Material | Metal | Structure | Spring Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
823 two screw plug 3G welded nut pipe clamp1.ISO 9001:2008 certification
2.full range of sizes are available
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
| Material | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating | electro zinc plated,6-8µm |
| Resistance welded nut | M8/10 1/2",H=18.0mm |
| Locking screw | combi-slot cheese head screw |
Advantage:
1.Large opening angle for easy insertion of the pipes.
2.Two-screw pipe clamp with patented rapid locking and readjusting mechanism.
3.Because of reliable click mechanism, the pipe can be preinstalled and adjusted easily.
4.Locking screw secured against loss.
Usage:
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems

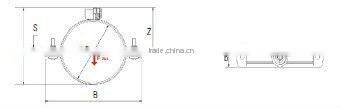

Technical data:
| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking screw | Rubber mm | PKG | Min.torque | Fzul |
| b x s | G | ||||||||
| Inch | mm | mm | pcs/box | Nm | KN | ||||
| 823012 | 1/4" | 1214 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 150 | 80 | 1.2 |
| 823015 | 3/8" | 1519 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 150 | 80 | 1.2 |
| 823021 | 1/2" | 2123 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 100 | 80 | 1.2 |
| 823026 | 3/4" | 2628 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 100 | 80 | 1.2 |
| 823032 | 1" | 3235 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 100 | 80 | 1.2 |
| 823040 | 1 1/4" | 4043 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 |
| 823048 | 1 1/2" | 4856 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 |
| 823057 | 2" | 5765 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 |
| 823063 | 6370 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 | |
| 823074 | 2 1/2" | 7480 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 |
| 823083 | 3" | 8391 | 20×1.5 | M8/M10 1/2" | M5×25 | N/A | 50 | 80 | 1.2 |
| 823100 | 100105 | 23×2.0 | M8/M10 1/2" | M6×30 | N/A | 25 | 90 | 1.5 | |
| 823108 | 4" | 108114 | 23×2.0 | M8/M10 1/2" | M6×30 | N/A | 25 | 90 | 1.5 |
| 823140 | 139144 | 23×2.0 | M8/M10 1/2" | M6×30 | N/A | 25 | 90 | 1.5 | |
| 823159 | 6" | 159169 | 23×2.0 | M8/M10 1/2" | M6×30 | N/A | 20 | 90 | 1.5 |

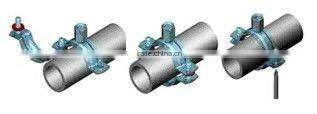

Installation:
Insert pipe, press together clamp parts, tighten locking screws
