Hose Clamp With EPDM Inlay
US$ 0.15 - 0.6
/ Piece
1000 Pieces(Min. Order)
- xiaolan or zhongshan
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | cofix | |
| Model Number | 812 | Usage | Pipe Clamp | |
| Material | Metal | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
hose clamp with EPDM inlay1.ISO 9001:2008 certification
2.full range of sizes are available
3.zinc plated
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
| Material: | steel DD11(material no.1.0332) acc. to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M8/10 |
| Locking screw: | combi-slot cheese head screw |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to +110° |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |
Technical data:

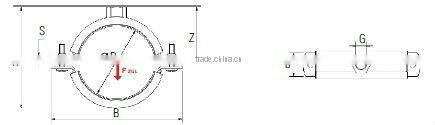

| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking screw | Rubber mm | PKG | Min.torque | Fzul |
| b x s | G | ||||||||
| Inch | mm | mm | pcs/box | Nm | KN | ||||
| 812012 | 1/4" | 12-14 | 20x1.2 | M8 | M6X16 | 20X3.5 | 150 | 70 | 1.1 |
| 812015 | 3/8" | 15-19 | 20x1.2 | M8 | M6X16 | 20x3.5 | 150 | 70 | 1.1 |
| 812020 | 1/2" | 20-23 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 70 | 1.1 |
| 812026 | 3/4" | 26-28 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 70 | 1.1 |
| 812032 | 1" | 32-35 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 70 | 1.1 |
| 812040 | 1-1/4" | 40-43 | 20x1.2 | M8 | M6X20 | 20x3.5 | 50 | 70 | 1.1 |
| 812044 | 1-1/2" | 44-49 | 20x1.2 | M8 | M6X20 | 20x3.5 | 50 | 70 | 1.1 |
| 812050 | 50-56 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 80 | 1.2 | |
| 812057 | 2" | 57-61 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 80 | 1.2 |
| 812063 | 63-67 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 80 | 1.2 | |
| 812070 | 70-73 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 80 | 1.2 | |
| 812074 | 2-1/2" | 74-80 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 80 | 1.2 |
| 812083 | 3" | 83-91 | 20x1.5 | M8/10 | M6X20 | 20x4.5 | 50 | 100 | 1.2 |
| 812101 | 101-106 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 1.5 | |
| 812108 | 4" | 108-114 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 1.5 |
| 812125 | 125 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 2.1 | |
| 812131 | 131-135 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 2.1 | |
| 812136 | 136-139 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 2.1 | |
| 812140 | 5" | 140-144 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 25 | 100 | 2.1 |
| 812159 | 159-163 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 20 | 100 | 2.1 | |
| 812165 | 6" | 165-169 | 25x2.0 | M8/10 | M8X25 | 25x5.5 | 20 | 100 | 2.1 |
Installation:
Insert pipe, press together clamp parts, tighten locking screws
