872 stainless steel pipe clamp without rubber
USD $0.2 - $2.99
/ Piece
1000 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- xiaolan or zhongshan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 872 | Usage | Pipe Clamp | |
| Material | Stainless Steel | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
872 stainless steel pipe clamp without rubber1.ISO 9001:2008 certification
2.full range of sizes are available
For fastening:
Pipe lines,such as heating,sanitary and waste water pipe to walls,cellings and floors.
Properties:
| Material | stainless steel AISI 304/INOX A2,and AISI 316/INOX A4 acc. to DIN 4301 and DIN 14401 |
| Resistance welded nut | M8 |
| Resistance welded nut | M10 |
| Locking screw | combi-slot cheese head screw |
Usage:
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems

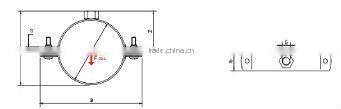

Technical data:
| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking screw | Rubber mm | PKG | Min.torque | Fzul |
| b x s | G | ||||||||
| Inch | mm | mm | pcs/box | Nm | KN | ||||
| 872012 | 1/4" | 12-14 | 20x1.2 | M8 | M6X16 | N/A | 150 | 60 | 1.1 |
| 872015 | 3/8" | 15-18 | 20x1.2 | M8 | M6X16 | N/A | 150 | 60 | 1.1 |
| 872018 | 1/2" | 18-23 | 20x1.2 | M8 | M6X16 | N/A | 100 | 60 | 1.1 |
| 872026 | 3/4" | 26-31 | 20x1.2 | M8 | M6X16 | N/A | 100 | 60 | 1.1 |
| 872032 | 1" | 32-35 | 20x1.2 | M8 | M6X16 | N/A | 100 | 60 | 1.1 |
| 872038 | 1-1/4" | 38-43 | 20x1.2 | M8 | M6X20 | N/A | 50 | 60 | 1.1 |
| 872044 | 44-46 | 20x1.2 | M8 | M6X20 | N/A | 50 | 60 | 1.1 | |
| 872050 | 50-56 | 20x1.5 | M8 | M6X20 | N/A | 50 | 60 | 1.1 | |
| 872057 | 2" | 57-61 | 20x1.5 | M8 | M6X20 | N/A | 50 | 65 | 1.2 |
| 872063 | 63-67 | 20x1.5 | M8 | M6X20 | N/A | 50 | 65 | 1.2 | |
| 872070 | 70-73 | 20x1.5 | M8 | M6X20 | N/A | 50 | 65 | 1.2 | |
| 872074 | 2-1/2" | 74-77 | 20x1.5 | M8 | M6X20 | N/A | 50 | 65 | 1.2 |
| 872083 | 3' | 83-91 | 20x1.5 | M8 | M6X20 | N/A | 50 | 65 | 1.2 |
| 872101 | 101-106 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 | |
| 872108 | 4" | 108-114 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 |
| 872118 | 118-125 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 | |
| 872131 | 131-135 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 | |
| 872136 | 136-139 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 | |
| 872140 | 5" | 140-144 | 25x2.0 | M10 | M8X25 | N/A | 25 | 75 | 1.5 |
| 872159 | 159-163 | 25x2.0 | M10 | M8X25 | N/A | 20 | 75 | 1.5 | |
| 872165 | 6" | 165-169 | 25x2.0 | M10 | M8X25 | N/A | 20 | 75 | 1.5 |
Installaton:
