2013 New Stainless Steel Pipes Metal Clamps
- xiaolan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 871 | Usage | Pipe Clamp | |
| Material | Stainless Steel | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Stainless steel pipes clamps1.ISO 9001:2008 certification
2.full range of sizes are available
3.clamp with rubber
Stainless steel pipes clamps for fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,ceilings and floors.
Properties:
| Material: | stainless steel AISI 304/INOX A2,and AISI 316/INOX A4,acc. to DIN 1.4301 and DIN 1.4401 |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M10 |
| Locking screw: | combi-slot cheese head screw |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to+110°C |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |
Application of Stainless steel pipes clamps :
1.Used for mounting of pipes to the walls (vertical / horizontal),ceilings and floors
2.For Suspending Stationary Non-Insulated Copper Tubing Lines
3.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.
4.Side screws are protected against loss during assemble with the help of plastic washers
Usage of Stainless steel pipes clamps :
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems

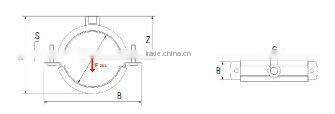

Technical data:
| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking screw | Rubber mm | PKG | Min.torque | Fzul |
| b x s | G | ||||||||
| Inch | mm | mm | pcs/box | Nm | KN | ||||
| 871012 | 1/4" | 12-14 | 20x1.2 | M8 | M6X16 | 20X3.5 | 150 | 60 | 1.1 |
| 871015 | 3/8" | 15-19 | 20x1.2 | M8 | M6X16 | 20x3.5 | 150 | 60 | 1.1 |
| 871020 | 1/2" | 20-23 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 60 | 1.1 |
| 871026 | 3/4" | 26-28 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 60 | 1.1 |
| 871032 | 1" | 32-35 | 20x1.2 | M8 | M6X16 | 20x3.5 | 100 | 60 | 1.1 |
| 871040 | 1-1/4" | 40-43 | 20x1.2 | M8 | M6X20 | 20x3.5 | 50 | 60 | 1.1 |
| 871044 | 1-1/2" | 44-49 | 20x1.2 | M8 | M6X20 | 20x3.5 | 50 | 60 | 1.1 |
| 871050 | 50-56 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 | |
| 871057 | 2" | 57-61 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 |
| 871063 | 63-67 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 | |
| 871070 | 70-73 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 | |
| 871074 | 2-1/2" | 74-80 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 |
| 871083 | 3' | 83-91 | 20x1.5 | M8 | M6X20 | 20x4.5 | 50 | 65 | 1.2 |
| 871101 | 101-106 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 | |
| 871108 | 4" | 108-114 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 |
| 871125 | 125 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 | |
| 871131 | 131-135 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 | |
| 871136 | 136-139 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 | |
| 871140 | 5" | 140-144 | 25x2.0 | M10 | M8X25 | 25x5.5 | 25 | 70 | 1.5 |
| 871159 | 159-163 | 25x2.0 | M10 | M8X25 | 25x5.5 | 20 | 70 | 1.5 | |
| 871165 | 6" | 165-169 | 25x2.0 | M10 | M8X25 | 25x5.5 | 20 | 70 | 1.5 |

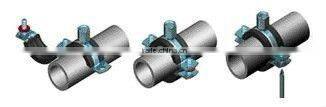

Installation:
Insert pipe,press together clamp parts,tighten locking screws.
