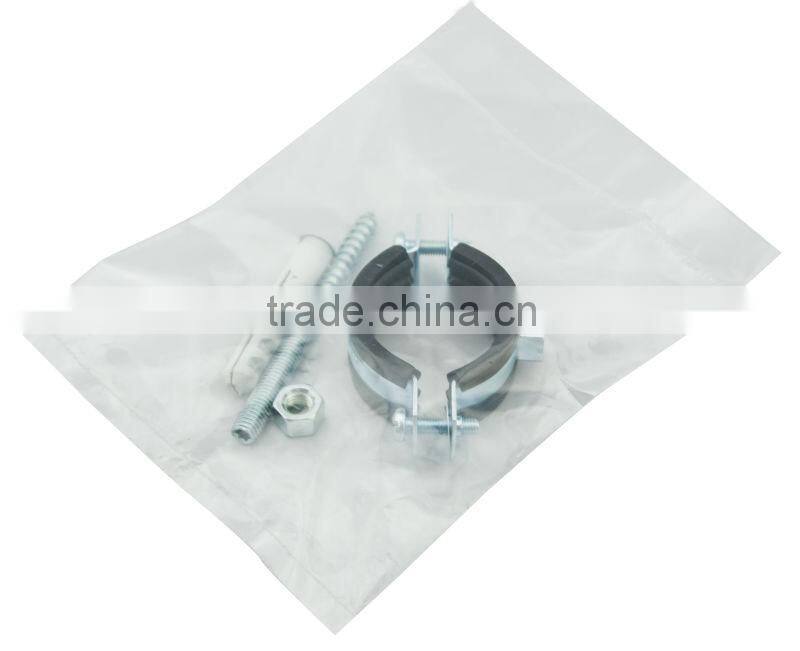

Steep Pipe Supports
- xiaolan zhongshan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 862 | Usage | Pipe Clamp | |
| Material | Metal | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Steep pipe supports1.ISO 9001:2008 certification
2.full range of sizes are available
3.surface treatment: galvanized
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes to walls,ceilings and floors.
Properties:
| Material: | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M10 |
| Locking screw: | combi-slot cheese head screw |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to +220°C |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |
Application:
1.Used for mounting of pipes to the walls (vertical / horizontal),ceilings and floors
2.For Suspending Stationary Non-Insulated Copper Tubing Lines.
3.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.
4.Side screws are protected against loss during assemble with the help of plastic washers.
5.Pipe clamp with rubber inlay. EPDM rubber resistant to aging.
Technical data:
| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking screw | Rubber mm | Extra Nut | Hanger Bolt | Plastic Plug | PKG | Fzul |
| b x s | G | ||||||||||
| Inch | mm | mm | DIN934 | pcs/box | KN | ||||||
| 862012 | 1/4" | 12-14 | 20x1.2 | M8 | M6X16 | 20X3.5 | M8 | M8X90 | 10 o.dx50 | 100 | 1.1 |
| 862015 | 3/8" | 15-19 | 20x1.2 | M8 | M6X16 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 100 | 1.1 |
| 862020 | 1/2" | 20-23 | 20x1.2 | M8 | M6X16 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 100 | 1.1 |
| 862026 | 3/4" | 26-28 | 20x1.2 | M8 | M6X16 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 100 | 1.1 |
| 862032 | 1" | 32-35 | 20x1.2 | M8 | M6X16 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 100 | 1.1 |
| 862040 | 1-1/4" | 40-43 | 20x1.2 | M8 | M6X20 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.1 |
| 862044 | 1-1/2" | 44-49 | 20x1.2 | M8 | M6X20 | 20x3.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.1 |
| 862050 | 50-56 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 | |
| 862057 | 2" | 57-61 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 |
| 862063 | 63-67 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 | |
| 862070 | 70-73 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 | |
| 862074 | 2-1/2" | 74-80 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 |
| 862083 | 3' | 83-91 | 20x1.5 | M8 | M6X20 | 20x4.5 | M8 | M8X90 | 10 o.dx50 | 50 | 1.2 |
| 862101 | 101-106 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 | |
| 862108 | 4" | 108-114 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 |
| 862125 | 125 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 | |
| 862131 | 131-135 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 | |
| 862136 | 136-139 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 | |
| 862140 | 5" | 140-144 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 |
| 862159 | 159-163 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 | |
| 862165 | 6" | 165-169 | 25x2.0 | M10 | M8X25 | 25x5.5 | M10 | M10X120 | 12 o.dx60 | 25 | 2.1 |
