Home > Products > Pipe clamp set package > Pipe Clamp Set Package With EPDM Rubber
Pipe Clamp Set Package With EPDM Rubber
- XIAOLAN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Cofix | |
| Usage | Pipe Clamp | Material | Metal | |
| Structure | Suspension Clamp | Standard or Nonstandard | Standard |
Product Description
Specifications
Pipe clamp set package with EPDM rubber1.ISO 9001:2008 certification
2.full range of sizes are available
3.zinc plated
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
| Material: | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M10 |
| Locking screw: | combi-slot cheese head screw |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to +220°C |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |
Advantages:
1.Used for mounting of pipes to the walls (vertical/horizontal) ceilings and floors.
2.EPDM lining for;
(1) Noise reduction up to 15dB level according to DIN 4109
(2)Vibration Reduction
(3)Partial compensation of thermal expansion.
3.Side screws are protected against loss during assembly and delivery with the help of plastic washers.
Usage:
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems

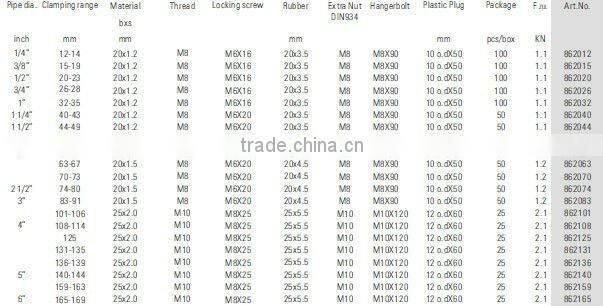

Technical data:
Installation:
Insert pipe, press together clamp parts, tighten locking screws
