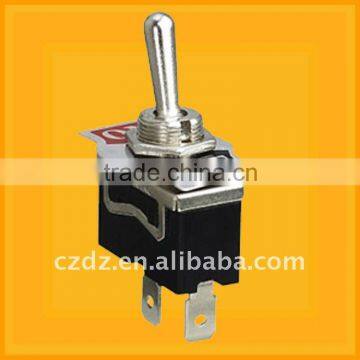

2 pole on-off machinery toggle switch wth waterproof,Three pole TPST 3-way toggle switch
- 50000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
You May Like
-
waterproof toggle switch,led toggle switch,aircraft toggle switch
-
9 pole safety car toggle switch with screws,lighted toggle switch
-
machinery toggle switch,medium toggle switch,toggle switch waterproof cover
-
toggle switch,sub miniature toggle switches,heavy duty toggle switch
-
machinery toggle switch,toggle switch wiring,power window switch
-
chzjcz/sub miniature toggle switch,15A 250V different types of guitar toggle switches
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHZJCZ | |
| Model Number | CZ806-D06 | Max. Current | 20A | |
| Max. Voltage | 250V | Mechanical Life | 10000times |
Product Description
SPECIFICATIONS OF OUR TOGGLE SWITCH :
- The contact resistance :≤ 30mΩ
- Dielectric strength:1500VAC/MIN
- Insulation Resistance:500V AC 1000mΩ/MIN
- Rated : 15A 125V AC
- 20A 250V AC
- Temperature -25~85.c
- Mechanic life :≥10000cycles
Drawing for this toggle switch:
.
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
