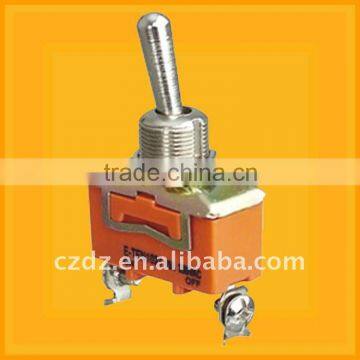

toggle switch,metal toggle switch,subminiature toggle switch,on-off toggle switch
- NINGBO
- T/T Credit Card
You May Like
-
15A on-off double pole toggle switch,auto toggle switch,spring return on off toggle switch
-
Momentary Toggle switch,3-way toggle switch,off on on toggle switch
-
12V plastic toggle switch,toggle switch safety guard,illuminated toggle switch
-
3 position 20A toggle switch with screw terminals,toggle switch 20a 250V ON ON
-
12V illuminated toggle switch,big button light switch,China 4P toggle switch
-
on-off toggle switch,remote control toggle,china toggle switches
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHZJCZ | |
| Model Number | CZ806-D01 | Max. Current | 15A | |
| Max. Voltage | 250V | Mechanical Life | 10000 |
Product Description
Specification of this Toggle Switch:
- The contact resistance : ≥100mΩ
- Withstand Voltage:1500V,AC/MIN
- Insulation Resistance:≤50mΩ
- Dielectric intensity:≥1500V AC/MIN
- Rated Load :10 A 250V AC
20A 125V AC
- Temperature: -25~85.c
- Mechanic life :≥10000times
Drawing of this toggle switch :
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
