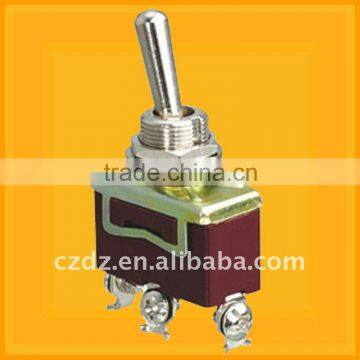

3 position 20A toggle switch with screw terminals,toggle switch 20a 250V ON ON
- 100000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
You May Like
-
12V illuminated toggle switch,big button light switch,China 4P toggle switch
-
on-off toggle switch,remote control toggle,china toggle switches
-
machinery toggle switch,automotive toggle switch,medium toggle switch
-
15A on-off-on waterproof toggle switch,on and off switch 250v,approval metal hand toggle switch
-
toggle switch,toggle switches with metal shake handle,auto resetting toggle switch
-
chzjcz/machinery toggle switch,on-off-on toggle switch single-pole double-throw type
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHZJCZ | |
| Model Number | CZ806-D02 | Max. Current | 20A | |
| Max. Voltage | 250V | Mechanical Life | 10000times |
Product Description
This switch ;toggle switch ; metal toggle switch;
| SPEC | DETAILS |
| Rating | 10A 125VAC; 6A 250VAC;15A 125VAC;10A 250VAC;20A 125VAC; 15A 250VAC |
Contact Resistance | 50MΩ Max |
Insulation Resistance | 500VDC 1000MΩ Min |
Dielectric Strength | 1000VAC 1 Minute |
Operating Temperature | - 25°c ~ +85°c |
Electrical Life | ≥ 10,000 cycles |
Approvals | CE ROHS VDE |
| Material | Base (bakelite) ,Handlle and Terminal (Copper and Silver plated).Silver Contact |
| Base color | Black,Red,Brown |
| Circuitry Trait | ON-OFF;ON-ON; ON-OFF-ON; ON-(ON); ON-OFF-(ON); (ON)-OFF-(ON); |
Drawing of this toggle switch :
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
