Home > Products > 6. EPS cnc router > Big size EPS Styrofoam cnc router machine , cnc foam cutter , with YASKAWA servo motor

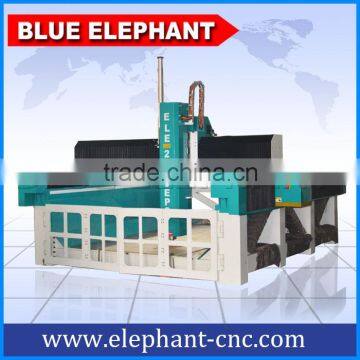

Big size EPS Styrofoam cnc router machine , cnc foam cutter , with YASKAWA servo motor
- 200 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T D/P D/A Credit Card PayPal
You May Like
-
high precision 4-axis wood cnc router with professional 4 axis UG Powermill software
-
Factory supply! High quality and low price 4 axis cnc router with mist cooling sprayer and steel flume
-
China high quality woodworking 4 axis wood cnc router
-
New type cnc auto tool changer with siemens control system and siemens servo driver
-
Dexian cnc manufacturing cnc drill machine price DX1325
-
Woodworking machine wood working tools multifunction woodworking machine new type machine woodworking
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | BLUE ELEPHANT | |
| Model Number | ELE2030EPS | Voltage | 380 V,3ph/50HZ(option:220v) | |
| Power(W) | 13kw | Dimension(L*W*H) | 2000*3000*900mm working area | |
| Weight | 3000KG | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Big size EPS Styrofoam cnc router machine , cnc foam cutter , with YASKAWA servo motor
Advantage:
- Self-lubricating, life-long maintenance-free Taiwan guide rail.
- 7.5kw Changsheng water cooling spindle , top brand in China, guaranteering maximum processing efficiency and productivity.
- Divided structure ,Fixing with screws,the whole structure is tested to the limit for sturdiness and reliability.
- NK 105 controller, Hand wheel guide, breakpoint resume, tool selection process ,high precision.
Features:
- Effective working area : 2000x3000x900mm
- 7.5kw BT40 water cooling spindle
- Taiwan DELTA inverter: 11kw
- Japan YASKAWA servo driver 1.3KW
- NK 105 control system 4 axis
- Dust proof for X,Y; Taiwan HIWIN #35, 6 slider for Z; 4 pieces of Linear guide on Y axis
- Taiwan TBI ball screw with high precision
- Dust hood for axis,dust collect hood and pipe for dust collector
- Divided structure ,Fixing with screws,heat treatment, Iron flat table
- Japan Shimpo reducer
Product Details of Styrofoam cnc router:
Parameters:
Description | Parameter |
X,Y,Z Working Area | 2000x3000x900mm |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z Repositioning Accuracy: | ±0.01mm |
Table Surface | 20# Iron flat table |
Frame | Divided structure ,Fixing with screws |
Y Structure | Helical rack gear , 4pcs HIWIN inear guide |
X,Z Structure | HIWIN #35 Linear guide |
Max. Power Consumption | 12KW |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 7.5kw |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan 1.3KW YASKAWA servo |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G Code |
Operating System | NK 105 |
Computer Interface | USB |
Flash Memory | 512M |
Collet | ER32 (20mm) |
X,Y Resolution | <0.01mm |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Weocome to our factory:
Jinan Dexian Machinery Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to contact us!
Contact Us:
Manager: Jack
Contact: Emma Lee
Skype: emmadexian
Mobile/whatsapp: 0086-15866602105
Web: dexian.en.china.cn
