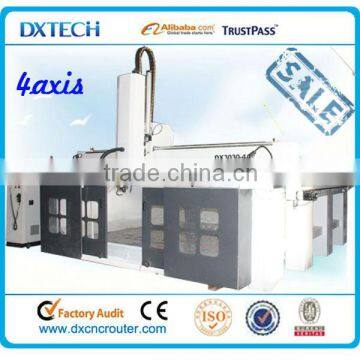

Mold making 4 axis atc cnc router cnc milling machine for foam

X,Y,Z Working Area

3000x30000x1000mm*180°

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z repositioning Accuracy

±0.01mm

Table Surface

Milling steel table (T-slot)

Frame

Welded structure (cast iron)

X, Y Structure

Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:

X axis, Y axis, 30mm

Z Structure

Ball Screw, Hiwin Rail Linear Bearings :

Z axis, 25mm

Max. Power Consumption

(Without spindle)  6.5Kw

Max. Rapid Travel Rate

40000mm/min

Max. Working Speed

25000mm/min

Spindle Power

9KW Italy HSD ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Yaskawa servo system : 1.3kw

Z axis is with band brake

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G code

Operating System

Syntec control System : EZ3M

(Osai)

Computer Interface

Ethernet

Flash Memory

256 M(with CF card)

Collet

BT40

X,Y Resolution

 <0.01mm

Software Compatibility

Type3, UcancameV9, Art cam software

Running Environment  Temperature

0degree - 45 degree

Relative Humidity

30% - 75%

Packing Size

2300X4800X1900mm (in parts)

N.W.

7300KG

G.W.

8000KG

Guarantee

One year from the date of commission

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors
