Product Description

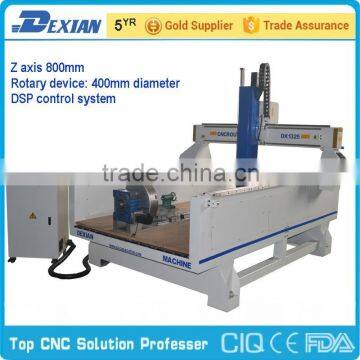

Cnc router dx DX1325 3d cnc wood carving router cnc machine made in germany
Advantage of cnc router machine:
1, 4.5kw China Changshenf water cooling spindle,It’s big strength and higher efficiency,
2, DSP control system, support offline orperation ,do not have to contact computer.
3. FL118 stepper motor and YAKO 2811 big driver,top brand in china ,very big power.
4. The new thicken big steel gantry &welded steel tube structure,very strong in use.
5. High Z axis, 800mm, with 4th axis rotary device. You can work on Cylinder Objects.
Parameters of cnc router machine:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x8000mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | Vacuum and T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 4.5 KW water cooling spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC380V V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | DSP control system(options: NCstudio/Mach3 PC Software) |
17 | Collet | ER25 |
18 | X,Y Resolution | <0.01mm |
19 | Software Compatibility | Type3/UcancameV9 Software |
20 | Running Environment Temperature | 0 - 45 Centigrade |
Application of cnc router machine:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives
making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic
mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Samples of cnc router machine:
Details display of cnc router machine:
Package and shipment of cnc router machine:
Selection of other models:
Our Services:
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare
part for free.
Out of 12 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone /trademanager online
service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
1 set machine, mixed order is also welcomed.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
