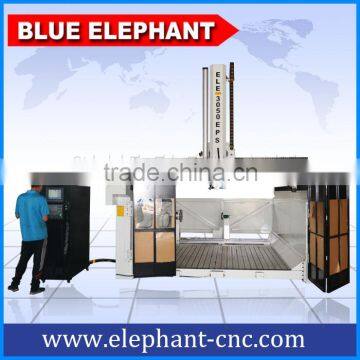

Home > Products > 6. EPS cnc router > 3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000
3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000
- Qingdao Tianjin etc.
- T/T D/P D/A Credit Card PayPal
You May Like
-
1935 EPS big wood cutter machine , 4 axis cnc router machine on wood stone foam mdf pvc acrylic
-
Big size EPS Styrofoam cnc router machine , cnc foam cutter , with YASKAWA servo motor
-
high precision 4-axis wood cnc router with professional 4 axis UG Powermill software
-
Factory supply! High quality and low price 4 axis cnc router with mist cooling sprayer and steel flume
-
China high quality woodworking 4 axis wood cnc router
-
New type cnc auto tool changer with siemens control system and siemens servo driver
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | BLUE ELEPHANT | |
| Model Number | ELE3050EPS | Voltage | 380V, 3ph(option: 220v) | |
| Power(W) | 10.5kw | Dimension(L*W*H) | 3000*5000*1500mm | |
| Weight | 7500kg | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000
Features of styrofoam 5 axis:
- Effective working area :2860x3500x1450mm
- Italy HSD brand air cooling spindle: 4.5kw
- 4th axis can move ±100°
- Taiwan DELTA inverter: 5.5kw
- Japan YASKAWA servo driver 1.5KW
- Taiwan SYNTEC control system 4 axis 21MA model
- Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
- Double Taiwan HIWIN #35 Linear guide for Y axis one side,total 4pcs #35 linear guide for Y axis.
- X,Z axis Taiwan HIWIN #45 linear guide .
- Taiwan TBI ball screw with high precision
- Dust hood for axis,dust collect hood and pipe for dust collector
- 2000mm floor with aluminum &PVC ,1300mm floor steel plate under angle
- Rotary device:diameter 300mm, length 2000mm
- New type dust collection with two bags
- Heavy duty gantry and structure
- Japan Shimpo reducer
Advantages of cnc foam cutting machine:
- Self-lubricating, life-long maintenance-free Taiwan guide rail.
- Italian high-speed spindle, with top speed of 24000rpm, guaranteering maximum processing efficiency and productivity.
- Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
- Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Product Details of large wood cutting machine:
Parameters of styrofoam 5 axis:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2860x3500x1450 mm*±100° |
2 | Effective working area | 2860x3500x1450 mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot Table |
6 | Frame | Big Steel Tube Structure |
7 | Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
8 | X,Z Structure | HIWIN #45 Linear guide |
9 | Max. Power Consumption | (Without Spindle) 5Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 1.5KW YASKAWA servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System 21MA |
18 | Rotary device | Diameter300mm, length 2000mm |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER32 (20mm) |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | New type dust collection | 1.5KW with two bags (equal the old type 4Kw ) |
PS:All the working area and specifications can be customized according to your requests.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 25 working days after payment.
Application:
Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
Samples show:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Welcome to our factory:
Jinan Dexian Machinery Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to contact us!
