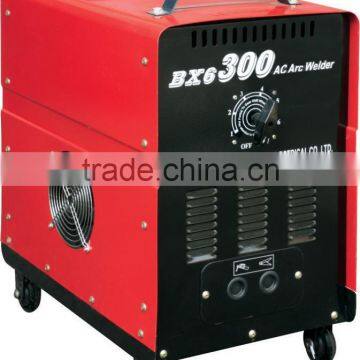

Industrial AC Arc Welding Machine BX6 Series
- T/T D/P D/A PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | eDON | |
| Model Number | BX6-160/200/250/300/400/500 |
Product Description
Specifications
The welding current uses the multi-positions switch, step adjustment, stable electric arc.No phenomenon that blows the mag
1. The welding current uses the multi-positions switch, step adjustment, stable electric arc.
Model | Rated input voltage(V) | Rated input capacity (KVA) | No-load voltage (V) | Rated welding current (A) | Applied welding rod(mm) | Current adjusting range (A) | Rated duty cycle (%) | Weight(KG) | Dimension(mm) |
BX-125 | 1 PH 220 | 6.8 | 50 | 125 | Φ2-Φ3.2 | 50-125 | 20 | 26 | 430*260*460 |
BX-140 | 1 PH 380/220 | 7.5 | 50 | 140 | Φ2-Φ3.2 | 50-140 | 20 | 32 | 430*260*460 |
BX-160 | 1 PH 380/220 | 9 | 52 | 160 | Φ2.5-Φ4 | 60-160 | 25 | 37 | 480*325*490 |
BX-200 | 1 PH 380/220 | 12 | 55 | 200 | Φ2.5-Φ4 | 75-200 | 20 | 40 | 500*325*540 |
BX-250 | 1 PH 380/220 | 15 | 56 | 250 | Φ2-Φ5 | 75-250 | 20 | 45 | 500*325*540 |
BX-300 | 1 PH 380/220 | 18.2 | 56 | 300 | Φ2.5-Φ5 | 80-300 | 20 | 51 | 500*325*580 |
BX-400 | 1 PH 380/220 | 25 | 56 | 400 | Φ2.2-Φ6 | 80-400 | 20 | 60 | 560*370*630 |
BX-500 | 1 PH 380 | 32 | 60 | 500 | Φ3.2-Φ7 | 100-500 | 35 | 68 | 560*370*630 |
