Home > Products > TRANSFORMER TYPE AC ARC WELDER > BX1-2 ac Arc Welding Machine

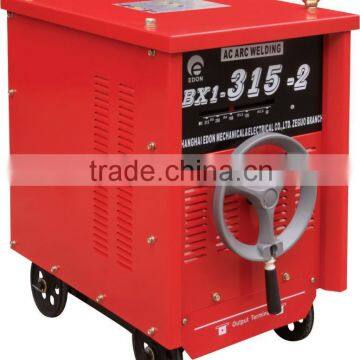

BX1-2 ac Arc Welding Machine
- Ningbo/shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | eDON | |
| Model Number | BX1-200/250/315/400/500/630-2 |
Product Description
Specifications
BX1-2 ac arc welding machine/equipment1.moving coil type transformer,suitable for 220v/380v AC supply
2.automatic temperature
eDON-let arc connect the world
BX1-2 ac arc welding machine/equipment
pass ISO9001system,and CCC certificate
our guarantee-your select
compact,light,easy to carry
Provided with automatic temperature protector and air-cooling unit,and high efficiency and safety
Application:
suitable for welding ferrous metal workpiece with general AC electrode
parameter:
ITEM | BX1-200-2 | BX1-250-2 | BX1-315-2 | BX1-400-2 | BX1-500-2 | BX1-630-2 |
Iput voltage(V) | 380/220 | 380/220 | 380/220 | 380 | 380 | 380 |
Frequency(hz) | 50 | 50 | 50 | 50 | 50 | 50 |
Phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase |
Current range(A) | 50-200 | 50-250 | 65-315 | 80-400 | 100-500 | 125-630 |
Rated input capacity(KVA) | 12.2 | 15.8 | 23.2 | 30.3 | 39.5 | 50.4 |
No-load voltage(V) | 58 | 60 | 70 | 72 | 75 | 76 |
Duty cycle(%) | 35 | 35 | 35 | 35 | 35 | 35 |
Usable electrodes(mm) | 2-3.2 | 2-4 | 2.5-5 | 2.5-5.8 | 3.2-6 | 3.2-8 |
Protection class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
Insulation class | F | F | F | F | F | F |
N.w/G.w(Copper)(KG) | 65/72 | 75/83 | 81/92 | 95/104 | 106/118 | 125/139 |
N.w/G.w(AL)(KG) | 62/70 | 68/76 | 72/80 | 81/90 | 95/107 | 112/125 |
Carton size(mm) | 520*420*690 | 520*420*690 | 585*445*695 | 585*445*695 | 645*485*770 | 645*485*770 |
