Home > Products > YTB Labeling Machine > Full Automatic Two Side Labeling Machine for Square Bottle
Full Automatic Two Side Labeling Machine for Square Bottle
- guangzhou
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Bottles | Packaging Material | Other, Bottel | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v,220v | Power | 1.1KW | |
| Place of Origin | Guangdong, China | Brand Name | yuxiang, yuxiang | |
| Model Number | YTB, TBJ-I | Dimension(L*W*H) | 1.8*1.35*1.7 | |
| Weight | 650kg | Certification | GMP,FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Full automatic two side labeling machine for square bottle
Machine’s Advantage:

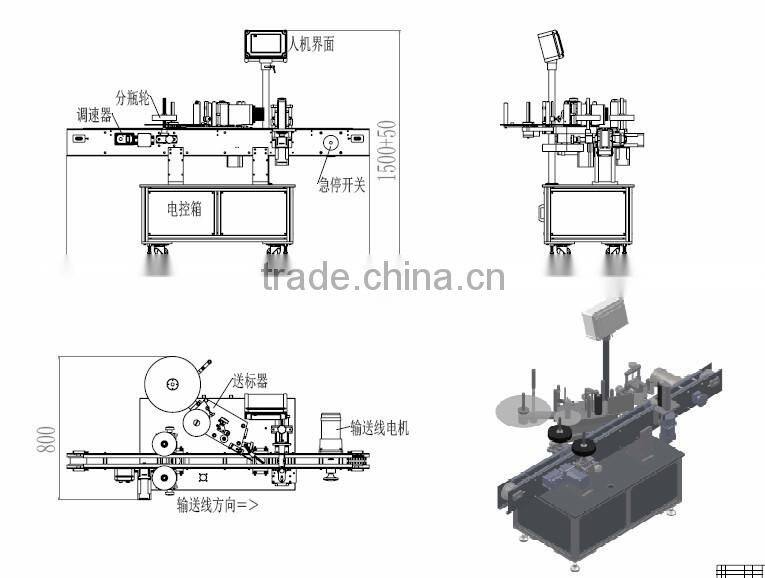

Construction of machine
Panasonic 750W ultra-small inertia servo motor, Panasonic servo amplifier, Delta converter, Taiwan speed motors,
Siemens Programmable Logic Controller (PLC),Taiwan color human-computer interface ( Operating interface in English and Chinese)
SICK label sensors from German, KEYENCE electric eyes of checking object from Japan
Mechanical part
Conveyor institutions:
200w taiwan AC motor ,Frequency converter adjust the speed. Guide bottle institutions :double coordinates ,adjustable ,prevented scratching bar bottle dividing institutions :taiwan motor,frequency control of motor speed
Round bottle institutions; using belt roll label institution
Characteristic:
The whole design of labeling machine is reasonable, easy to operate, the flexibility to switch to different round bottle bodies, easy to change forcustomers , suit for most of the round bottle labeling requirements; extrusion between high elastic scraper and non-powered sponge , to ensure that no bubbles ; machine used to strengthen the rigidity of the mechanical structure design, simple, generous and stable.
Technical parameters
220V 50 Hz 1200W
production speed :40m/min
Label accuracy: ±1mm
Bottle diameter:20-100mm ,If over the range , we can accept customizing)
Label max diameter: 350 mm
Label inner diameter: 76.2 mm
Label max width: 130mm
Size of machine: L2000*W800*H1400(mm)
Weight of machine: 150 kg
performance perameter
Computerized control systems.
large touch screen, and simple operation.
Adopts Servo motor,can improve labeling accuracy when increase speed, and machine performance more stable.
More than 100 groups labeling parameter memory , swap-sample production quickly. The whole machine is composed by senior tainless steel and aluminum alloy composition by Anodic treatment, never stainless, and GMP standards.
Labeling speed :46 m/min, can be adjusted freely .
paper volume bore diameter: φ76 mm.
Maximum paper volume outside diameter: φ370 mm.
Power: 380V, 50/60HZ, 3KW. (can be changed according to regions).
Standard label height: 10-190 mm (can be design according to client's request).
Dimensions (length x width x height): 3000 mm× 1500 mm mm× 1750.

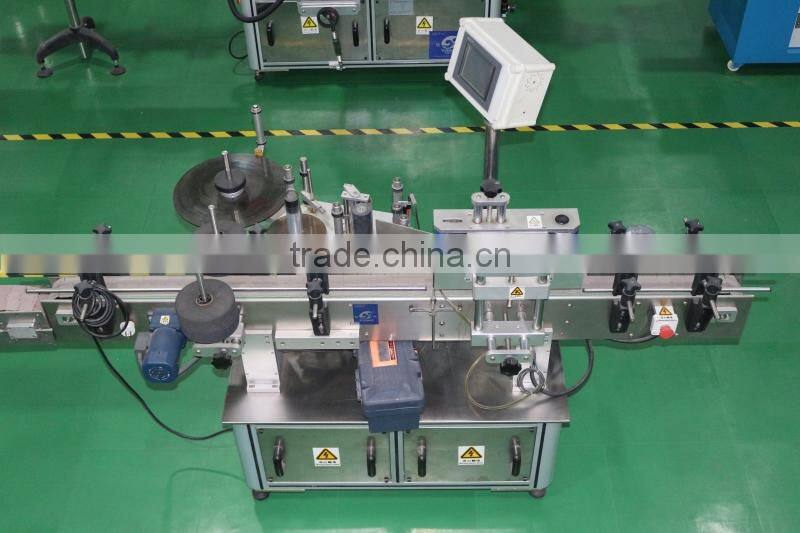

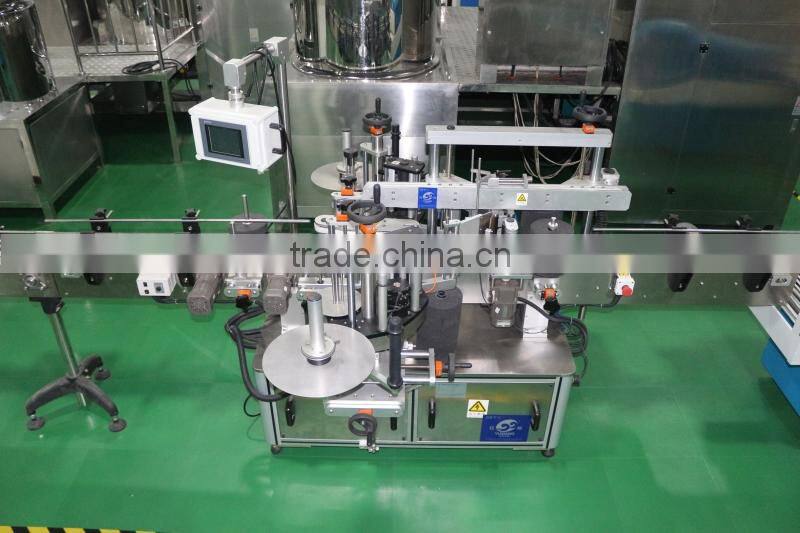

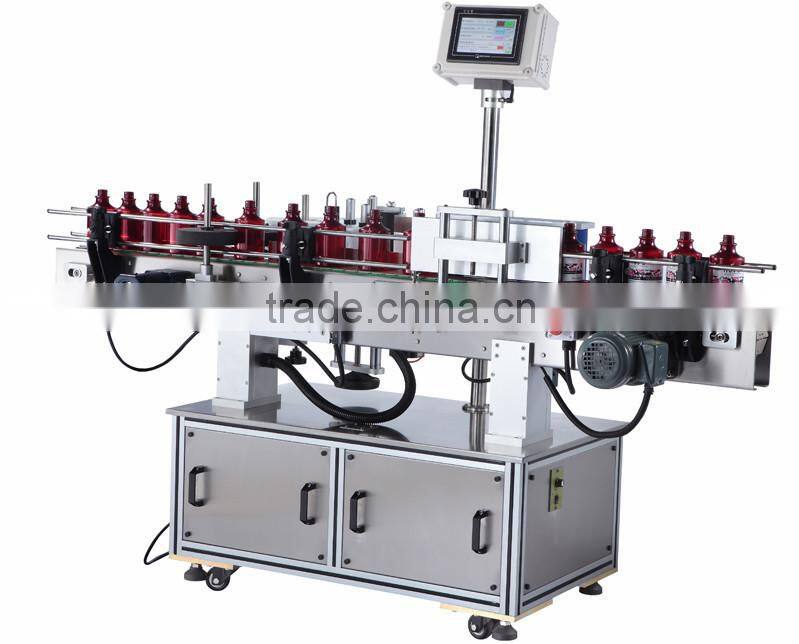

Pictures:
Customers visit our company in Guangzhou

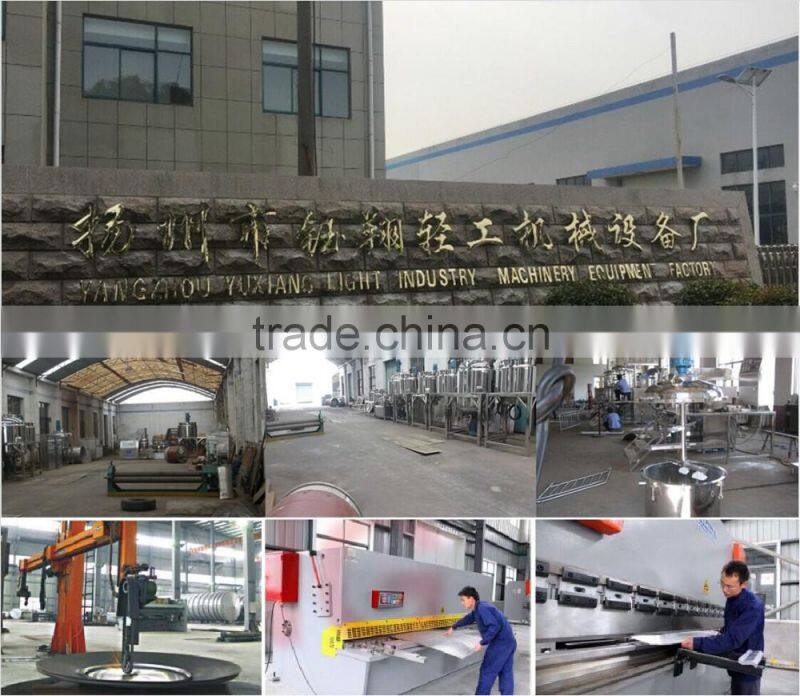

Factory and exhibiton
Services team
The above machine which we supply it to you, we supply you one year's after sales warranty, we can also dispatch our engineer to your factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Yuxiang Light Industrial Machinery Corporation Of Guangzhou is a manufacturer that produces cosmetic, pharmaceutical,chemical and dairy product equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. The main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machine and all kinds of stainless steel tanks, all of which are of reliable quality and good effect.
We have more than ten years experience in machinery manufacturing and have domestic and overseas markets. The diverse products of high quality can meetvarious needs of industries mentioned above.
Q.Are you manufacture or trading company?
A.We are factory, we have our own design team and own workshop, with more than 15year's OEM experience.
Q.Can you make me quotation and send me your price list right now?
A.Sorry, our products are all none standards, need custom-made according to client's requirements, so pls let me know your requirements, We will make drawing and quotation for you.
Q. What's your MOQ?
A. 1PCS/SET.
Q.What's the payment terms?
A. 30%T/T as advance payment, 70% before shipment, we also accept irrevocable L/C at sight, Western Uunion, Money Gram.
Q.What's your delivery time?
A.20-50 working days according to your Qty.
Q.Can you send the machine to my sea port?
A. Yeah, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is GuangZhou.
Q.Where is your factory located?
A. Our address: Shanguang New Industrial Zone, Cheluo Town, Gaoyou, Jiangsu Province.
Q.Do you provide installation&debugging service?
A. Yeah, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding. If production line, our engineer will go to your place do installation & debugging for you directly.
Q. Do you provide after-sale service?
A. The warranty period is one year. If there’s any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely; other small problem we will guide you to solve it by phone or e-mail; If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation)
Any more question, welcome contact us.
