Semi-Automatic Labeling Machine and Date Printing Machine

Specifications

Double sides Round Bottle Labeling Machine

Machine’s Advantage:

1. this machine is suitable to produce label of round bottle and round things of eery industry
it adopts synchronized imported motor control and sticks label precisely,it has little error

and high efficiency. Fuilure and date value alarm device (optonal) is conneted with printer

and can output shift producton record to realize monitoring production condition automatically
2 it can divide bottles austomatically.deliver labels,separate labels, stick labels and print
batch number automatically
3 Coder collects signal,PLC programmable control, matched with touch screen to operate,

synchronized motor drives, it is easy to operate and sticks labels precisely.
4 Flat bottle, square bottle and profiled botles can be choosen to equipped

performance perameter

Computerized control systems.

large touch screen, and simple operation.

Adopts Servo motor,can improve labeling accuracy when increase speed, and machine performance more stable.

More than 100 groups labeling parameter memory , swap-sample production quickly. The whole machine is composed by senior tainless steel and aluminum alloy composition by Anodic treatment, never stainless, and GMP standards.

 Labeling speed :46 m/min, can be adjusted freely .

paper volume bore diameter: φ76 mm.

Maximum paper volume outside diameter: φ370 mm.

Power: 380V, 50/60HZ, 3KW. (can be changed according to regions).

Standard label height: 10-190 mm (can be design according to client's request).

Dimensions (length x width x height): 3000 mm× 1500 mm mm× 1750.

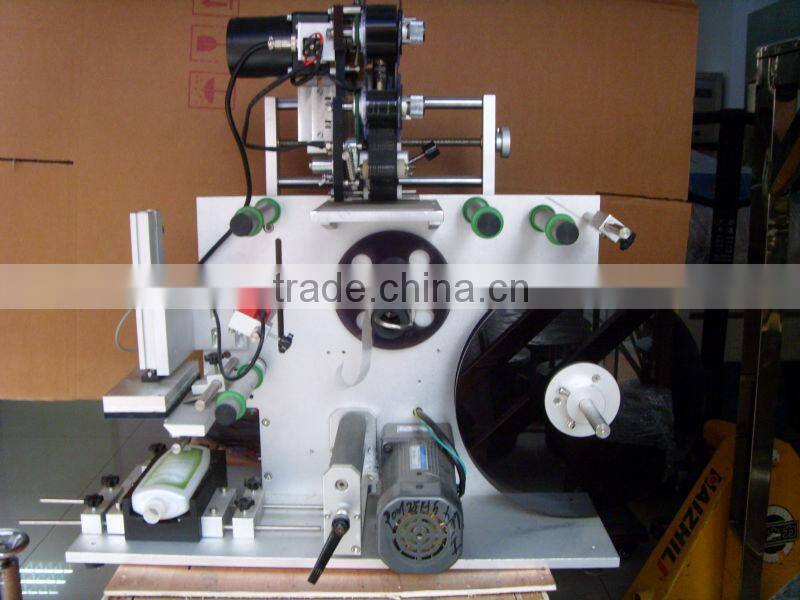

Pictures:

After Sales Service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

Payment terms:

30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.

Package:

Standard wooden Case Packing

Shipment terms:

We usually take FOB, but we can also accept EXW,CIF,CNF.
