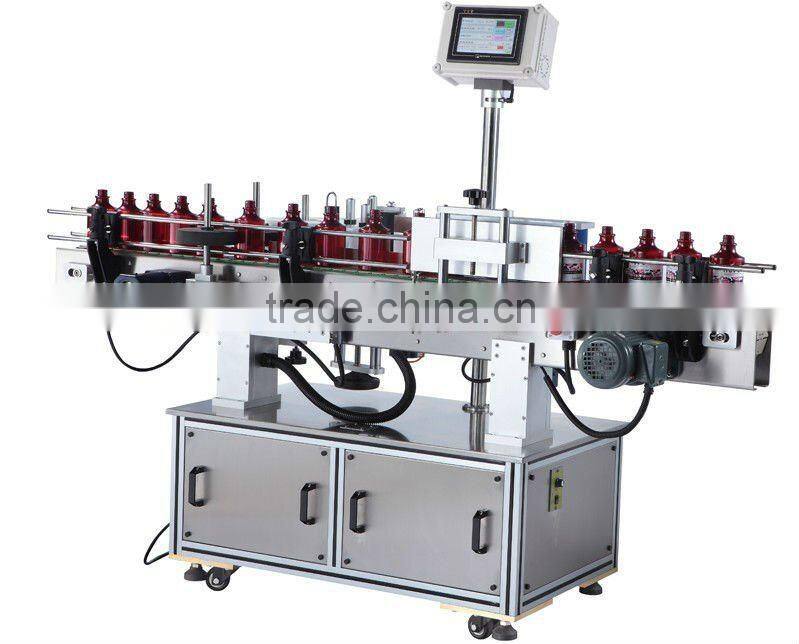

Full Automatic Round Bottle Labeling Machine

Specifications

TBY Universal type round bottle labeling machine

Construction of machine

Panasonic 750W ultra-small inertia servo motor, Panasonic servo amplifier, Delta converter, Taiwan speed motors,
Siemens Programmable Logic Controller (PLC),Taiwan color human-computer interface ( Operating interface in English and Chinese)
 SICK label sensors from German, KEYENCE electric eyes of checking object from Japan

Mechanical part

Conveyor institutions:

200w taiwan AC motor ,Frequency converter adjust the speed. Guide bottle institutions :double coordinates ,adjustable ,prevented scratching bar bottle dividing institutions :taiwan motor,frequency control of motor speed

Round bottle institutions; using belt roll label institution

Characteristic:

The full automatic round bottle labeling machine whole design of labeling machine is reasonable, easy to operate, the flexibility to switch to different round bottle bodies, easy to change forcustomers , suit for most of the round bottle labeling requirements; extrusion between high elastic scraper and non-powered sponge , to ensure that no bubbles ; machine used to strengthen the rigidity of the mechanical structure design, simple, generous and stable.

Technical parameters

220V 50 Hz 1200W

production speed :40m/min

Label accuracy: ±1mm

Bottle diameter:20-100mm ,If over the range , we can accept customizing)

Label max diameter: 350 mm

Label inner diameter: 76.2 mm

Label max width: 130mm

Size of machine: L2000*W800*H1400(mm)

Weight of machine: 150 kg

Action description:

After Objects enter into the conveyor belt, and pass detecting photoelectric position, start labeling, the bottle and then roll through the cylinder three-roller institution and roll labeling instruction complete the action of automatic labeling

Main material

The  full automatic round bottle labeling machine is made of 304 stainless steel and aluminum materials, the standardized design, interchangeable parts, Completely according with GMP requirements.
Delivery labeling structure use aluminum body structure, surface sandblasting treatment, bright cleaning, easy to maintenance, conveyor plate made of imported parts, good toughness, durability, easy to clean and do not distort

Main feature

1)It is widely used in pharmaceutical, chemical, food, cosmetic and other industries round bottle labeling adhesive.

2)The design of the head absorb the means of labeling transmission of import design to solve the general labeling of domestic instability.

3)The full automatic round bottle labeling machine can be stand-alone operations and wiring production line.Since the machine uses a combination of cutting-edge technologies, and high-performance implementation components - ultra small inertia servo motor, the system pass by Siemens programmable logic controller professional closed-loop control of servo motors, use advanced human-computer interface system to realize man-machine conversation, During the host was rushed to the label speed control process, accuracy class can reach 0.01 m / min , rather than the general machinery of 1 m / min,in this regard ,the machine increase two accuracy classes; and in terms of speed, this machine is the use of ultra-small inertia high-power 750W Panasonic servo motor , the production speed in the 0.5-40 m / minute to set any number between the large-scale adjusted to meet the customer's production line speed, so as to achieve real High-speed labeling.

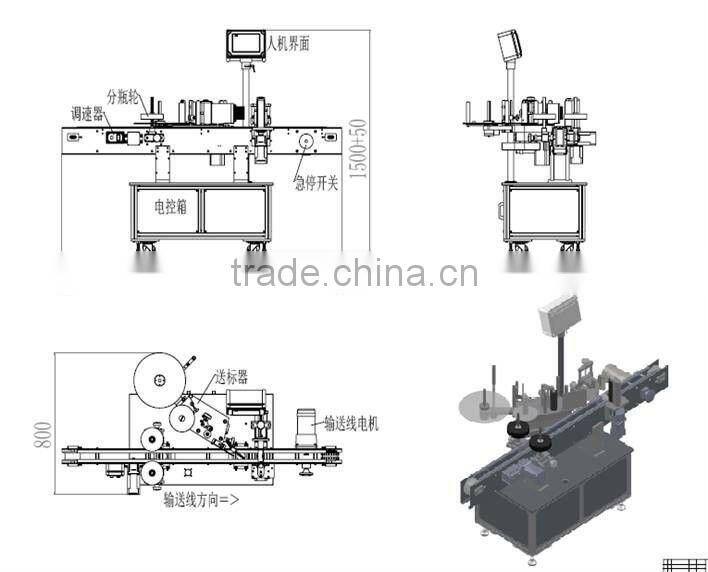

Three-dimensional diagram
