Jig for Gravity Separation

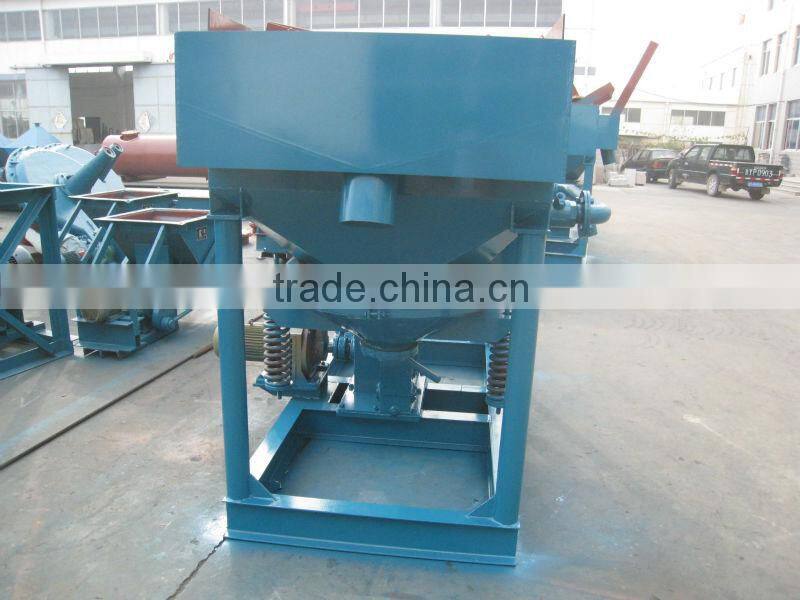

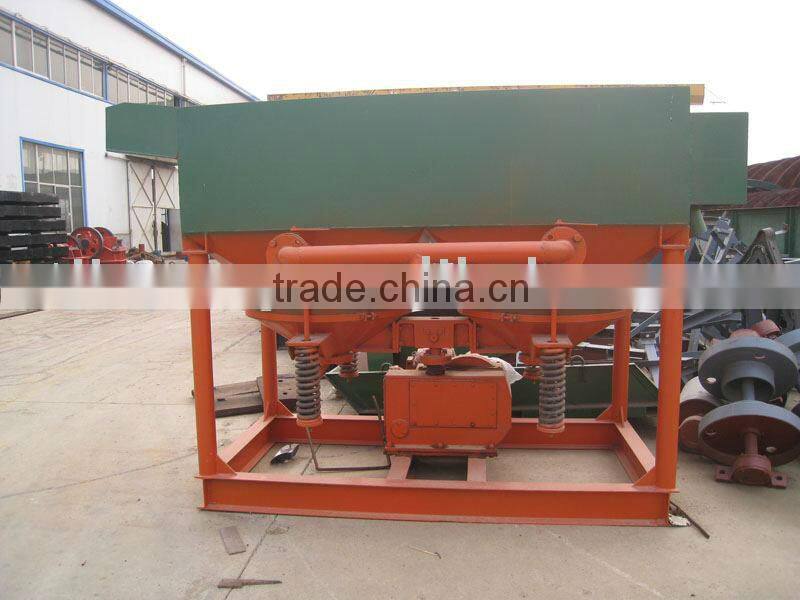

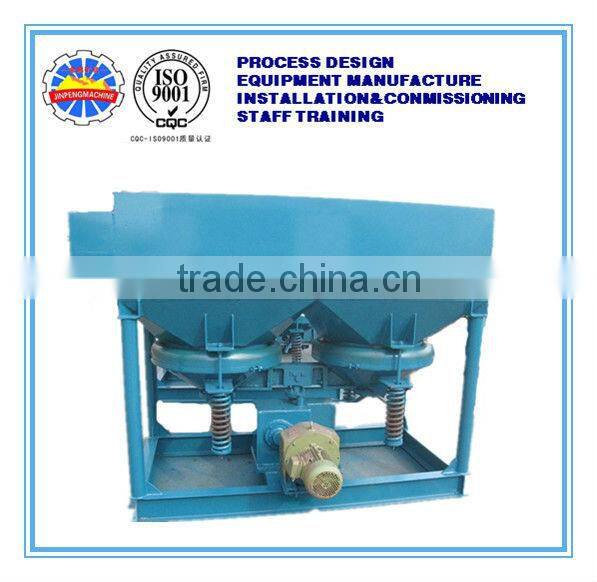

Sawtooth wave jig is a new type energy saving high efficient gravity separation equipment.  Sawtooth wave jig can handle raw materials at various particle sizes except some fineness ore. Simple operation, large capacity, and can get some final products in single separation. It is widely used in the production process. For metal ore, is a better equipment to deal with coarse, medium and fine grain of iron ore and manganese, also used in separation tin, tungsten etc; The jig separation also has extensive use in gold, tantalum, niobium titanium, chromium etc raw ore and placers, as well as the adamas; Also can have a better result in zinc oxide ore.

Sawtooth wave jig structure (see figure 1, figure 2, figure 3, figure 4 figure 5.)

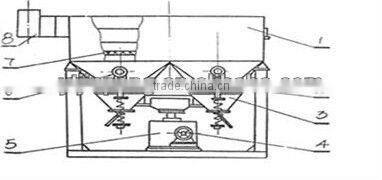

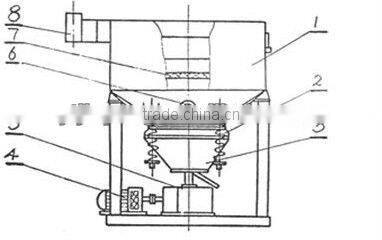

Figure 1:JT2-2 Sawtooth wave jig structure

Figure 2:JT0.57-1,JT1-1 Sawtooth wave jig structure

Figure 1,Figure 2: 1.Dressing tank part 2. Rubber diaphragm part 3. Cone bucket part4. Electromagnetic control motor part 5. CAM box part 6. Supply pipe flanges 7. Sieve net 8. Feed chute

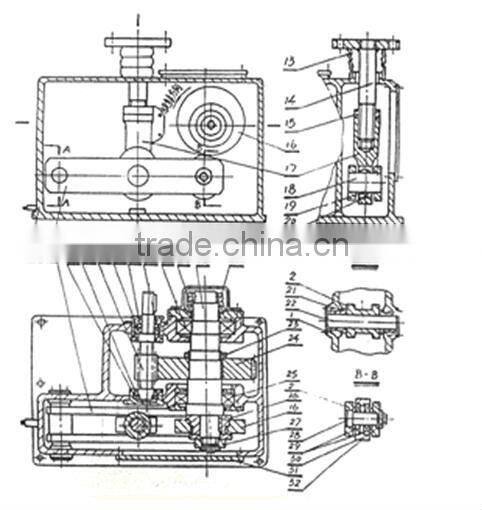

Figure 3:JTO.57-1,JT1-1,JT2-2 CAM box structure

1. Box 2. Lever 3 6. 7206 bearing 4,7,8.Adjustment gland 5 gear axle

9. bearing 313 10. Bearing 8112 11. The crankshaft 12, 15, 23, 17. Nut 13. Dustproof set 14. Punch 16. CAM 17. Punch base 18. Axis 19. Joint bearing inner ring 20. Joint bearing outer ring 21. Circle cover 22. Axis 24. Gear 25. 2216 bearing 26. Angle Adjustment gear 28. Axis 29. 7207 bearing 30. Bearing coat (roller) 31. back cover plate 32. Adjustment screw
