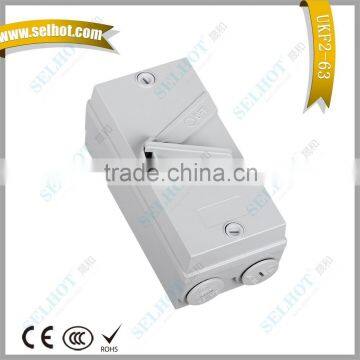

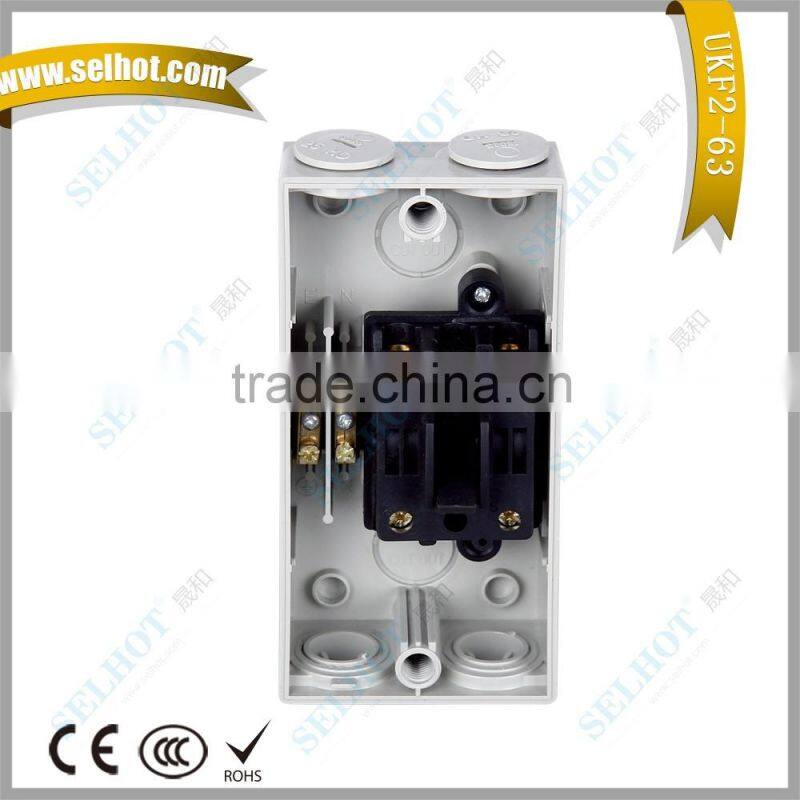

Ip56 Industrial Australian Weather Protected Isolating Switch 2P 63A

Product Type

Package Size                 (CM)

QTY/CTN                (PCS)

G.W (KGS)

N.W   (KGS)

UKF 1P

44.5

19.5

39

20

11

9.5

UKF 2P

44.5

19.5

39

20

11

9.5

UKF 3P

44.5

19.5

39

20

11

9.5

UKF 4P

44.5

19.5

39

20

11

9.5

Model Number

Parameter

IP Rating

UKF 1P-20

20A 250V single pole, surface switch, terminals accommodate 16mm² cable, M rating 220

56

UKF 1P-35

35A/63A 250V single pole, terminals accommodate 16mm² cable, M rating 220

56

UKF 1P-63

56

UKF 2P-20

20A 440V Double pole, terminals accommodate 16mm²  cable, M Rating 180

56

UKF 2P-35

35A 440V Double pole, terminals accommodate 16mm² cable, M Rating 180

56

UKF 2P-63

63A 400V Double pole, terminals accommodate 16mm² cable, M Rating 180

56

UKF 3P-20

20A 440V Tripe pole, terminals accommodate 16mm²  cable, M Rating 180

56

UKF 3P-35

35A 440V Tripe pole, terminals accommodate 16mm² cable, M Rating 180

56

UKF 3P-63

55A 440V Tripe pole, terminals accommodate 16mm² cable, M Rating 180

56

Model Number

Parameter

IP Rating

UKF 4P-20

20A 440V Four pole, terminals accommodate 16mm²  cable, M Rating 180

56

UKF 4P-35

35A 440V Four pole, terminals accommodate 16mm² cable, M Rating 180

56

UKF 4P-63

55A 440V Four pole, terminals accommodate 16mm² cable, M Rating 180

56

UKF 3P-55-32CE

55A 440V Tripe pole, with 32mm conduit entry at each end terminals accommodate 16mm² cable, M Rating 160

56

UKF 3P-63-32CE

63A 440V Tripe pole, with 32mm conduit entry at each end terminals accommodate 16mm² cable, M Rating 160

56
