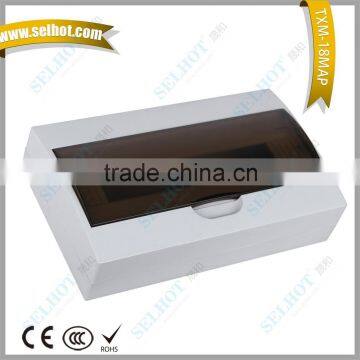

TXM-18way Electrical Plastic Busbar Water Proof Distribution Junction Box
- NINGBO or SHANGHAI
- T/T
You May Like
-
ABS and PC Luxury High Distribution Junction Box Machines
-
Zhejiang High Quality 15way Water Proof IP Certified Junction Distribution Box
-
ABS PC Outdoor Water Proof Distribution Junction Box
-
2ways 4ways 6ways 8ways Fiber Electrical Termination for Distribution Board
-
Outdoor Water Proof Distribution Box Made in China Famous Factory
-
Plastic IP65 Electrical Termination for Distribution Board
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SELHOT | |
| Model Number | TXM-18MAP |
Product Description

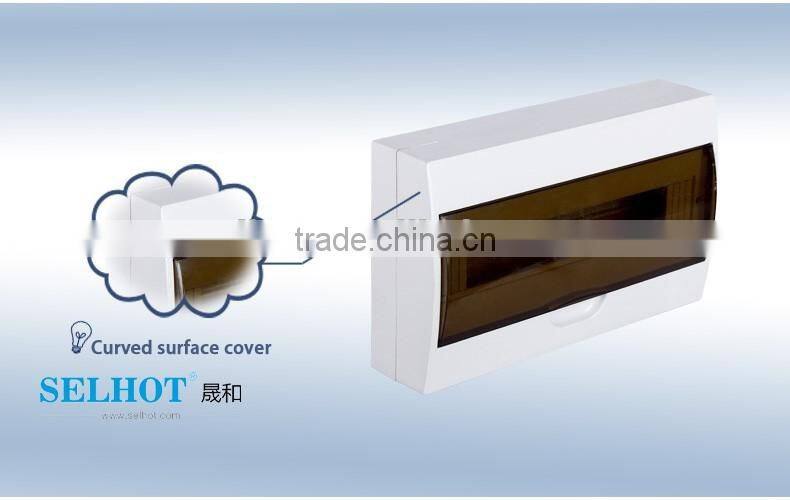

Overall panel design is luxury and attactive ,the face covering colors are dark green and brown( provided according to the color needs of the different interior residential desingns except for the standard colors ).The design of the face covering gives a noble and elegant feeling .Pure lovry, high strreength,never change color,transparent material is PC.Fixed frame, simole structure ,and easy installation.
Parameters |
| Rated current | 63A |
| Short-circuit macking current | 10KA |
| Shall material | ABC Polymeric carbon |
| transparent Material | PC |
| Color | White |
| Face coverind | Transparent |
Mounting Type | Concealed Mounted and Open Mounted |

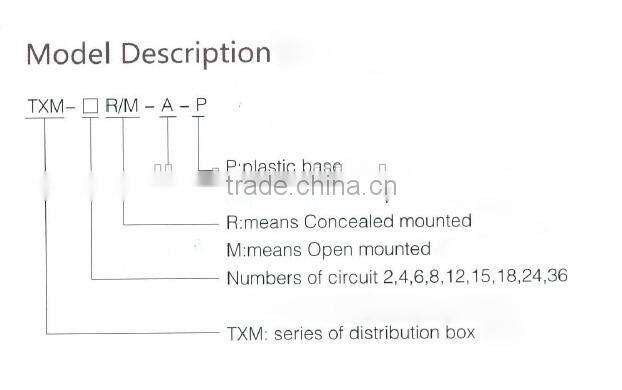

Model Number | L(mm) | W(mm) | H(mm) |
TXM-2RAP/MAP | 94 | 146 | 85 |
TXM -4RAP/MAP | 135/112 | 222/200 | 85/94 |
TXM -6RAP/MAP | 171/146 | 222/200 | 85/94 |
TXM -8RAP/MAP | 207/184 | 222/200 | 85/94 |
TXM -10RAP/MAP | 244/222 | 222/200 | 85/94 |
TXM -12RAP/MAP | 280/256 | 222/200 | 85/94 |
TXM -15RAP/MAP | 334/312 | 222/200 | 85/94 |
TXM -18RAP/MAP | 399/363 | 251/220 | 92/94 |
TXM -24RAP/MAP | 300/270 | 344/325 | 98/94 |
TXM -36RAP/MAP | 300/270 | 481/458 | 98/94 |
Delivery Methods: By Sea or By Air ( Express DHL, FEDEX, TNT).
2. Distributoership are offered for your unique design and some our current models .
3. Protection of your sales area, ideas of design and all your private information .
4.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
5.Production report before your order packed.
6.Shipping notice and photos sent to you as soon as your order is shipped.
Q-1. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q-2. Are you original Factory?
A: Yes, we have our own factory with many storage.
Q-3. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.
