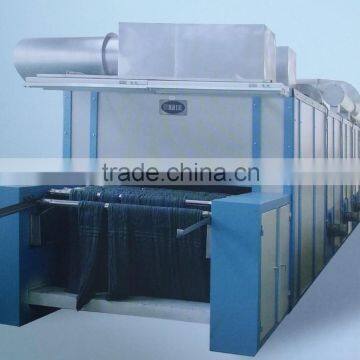

Continuous Hank Yarn Tunnel type Drying Machine

DC series Continuous Hank Yarn Tunnel type Drying Machine

The usage of the products:

 The machine is used for the dryness of wool, acrylic fibers and cotton yarn after wet processing. There are different specifications from 3 barns to 8 barns. It is most suitable for drying hank yarns of woolen, cotton, synthetic and any other blended fibres. Wide range of conveyor velocity ratios and automatic temperature control system are equipped to process different fibre quality of the hank yarns to be worked. Good thermal efficiency, maximum drying capacity, safe and easy operation are your assurance.

 Standard Features

 1.  Body being built with insulated panels with heat-resistant fibre glass material inside to ensure heat insulation.High efficiency heater
2. complete with automatic temperature control system, guarantees hot air to penetrate through yarns and recirculate within the enclosure.

3. Driving equipment for the conveyor completely enclosed but easily accessible for maintenance purposes.

4. Cooling fan installed at both ends to improve the working environment.

5. Hank- holding bar of light stainless steel for easy handing.

6.Belt conveyor, to transport hank- holding bars from the delivery end to the feed end

The main technical parameter:

1. Form:       Continuous Drying.

2. The height of the intake and exit of the conveyer bar:960mm.

3. The availability longness of the: 1480mm.

4. The traveling speed of the conveyer bar: 0.2~1.5m/min.

5. Steam working pressure:   3.5~4kg/cm².

6. The temperature of the drying house: 90°C~130°C,automatic temperature control


SPECIFICATIONS:
