Automatic temperature control loose fiber Dryer

FOB Price

US$ 30,000 - 70,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Place of Origin	Jiangsu, China	Brand Name	HD
Model Number	B061	Voltage	220V/380V
Dimension(LWH)	1277536502735	Certification	CE Marking
Warranty	13 Months	After-sales Service Provided	Engineers available to service machinery overseas

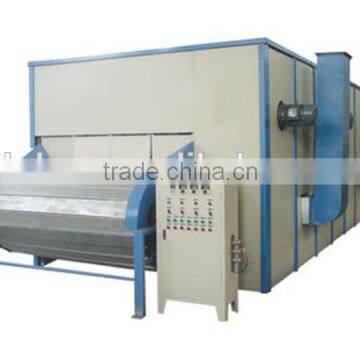

HD B061 Automatic Temperature Control

Loose Fiber Dryer

Application

This machine is suitable for continuously drying the loose fiber such as wool, chemical fiber, cotton, jute, acrylic, ect.

Main Technical parameter

1. Type: Continuously drying

2. Entrance & exit height of carrier plate: 1196.5 mm

3. Efficient width of carrier plate: 1768mm.

4. Efficient area of carrier plate: 20.5m²

5. Moving speed of carrier plate: 0.137—0.92m/min, frequency control.

6. Heat dispersing area: 138m²

7. Steam working pressure: 4kg/cm²

8. Heating mode: Spiral type

9. Oven temperature: six sets of oven, 65~108 degree, controllable (standard model)

10. Moisture regain after drying: 10~13%

11. Rotation speed of rotating speed: 100rpm.

12. Air Quantity of fan: air quantity of upper fans are around 8000 m3/h; air quantity of lower fans are around m³/h.

13. Drive mode: Lattice (customizable), AC variable frequency speed regulation.

14. Shape size: LWH 12775*3650*2735.

15. Production rate: above 110 kg/h.
