Home > Products > Dyeing machine > Cold Pad Batch Dyeing Equipment
Cold Pad Batch Dyeing Equipment
- Shanghai Port
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | HD | |
| Model Number | HD-240 | Voltage | 380v | |
| Power(W) | 12KW | Certification | CE marking | |
| Warranty | 13 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

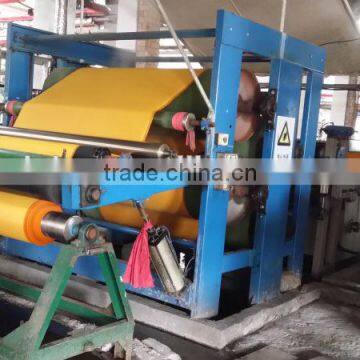

HD-240 type Cold Pad Batch Dyeing Equipment
Principle:
1. This is a standard cold batch dyeing machine.Basic technological process is feed in—cooling roller—eveness squeezer—package.
2. Basic principle of cold batch dyeing is reactive dyes under normal temperature alkali fixing color ,according to this principle,the main notice points is:cooling roller feed in,small liquor ratio dye vat,low tension winding.
3. Big rolling dia. low tension is special important for the center winding device,top grade of frequency converter with lower price.
Technical Parameter:
| Machine speed | 1—30m/min |
| Working width | 2400mm |
| Direction | left hand or right hand(customer selfcare) |
| Total Machine power | 12KW |
| Tramission mode | AC frequency conversion |
Composition:
Feeding frame 1 pcs
Suction edge device 1 pcs
Two cold water rollers as one group
Eveness padder + charging basket 2 pcs + one group of cooling device
Centre winding
Electrical apparatus control system one group
A-type rolling frame(buy in adition)
Contact Us
- Wuxi Hongda Dye-Finishing Euipment Producting Co., Ltd.
- Contact nameJennifer Yin Chat Now
- Phone86-510-83399805
- AddressHuihe Road No.30, Qianzhou Village, Qianzhou Town, Huishan District, Wuxi, Jiangsu
