5 Gallon PC Barrel Extrusion Blow Moulding Machine

5 gallon PC barrel extrusion blow moulding machine

Clamping System---------Fixed Mold Open-Close system
Extrusion System--------Hard Gear Surface Gearbox and  Imported Inverter (Japan Brand)
Die system--------------Accumlator type die head
Hydraulic System--------Imported hydraulic valve, Imported seals and Eletricity-Liquid proportional control
Control System----------Janpan PLC, Imported HMI and PLC automatic temperature control

Extrusion blow molding machine features:
1. The screw adopts high potency melt to make sure the material well mixed.
2. Adopt frequency control of motor system to reduce the power consumption.
3. Adopt horizontal movement frame to improve stability and speed.
4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.
5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
7. Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
8. The precise time control system assured good quality, suitable weight and reduces production cycle.
9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
10. Multi-function bottom blowing type for shaped products.
11. The mechanical arm can take out the product automatically.

Machine parameter:

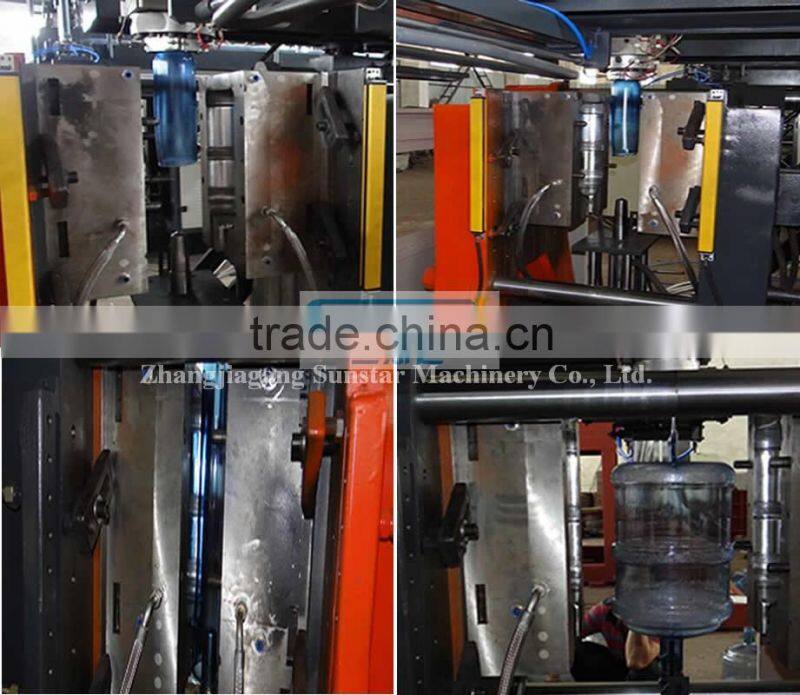

5 gallon PC barrel extrusion blow moulding machine discharge, mold closing, molding

5 gallon PC barrel extrusion blow moulding machine dryer

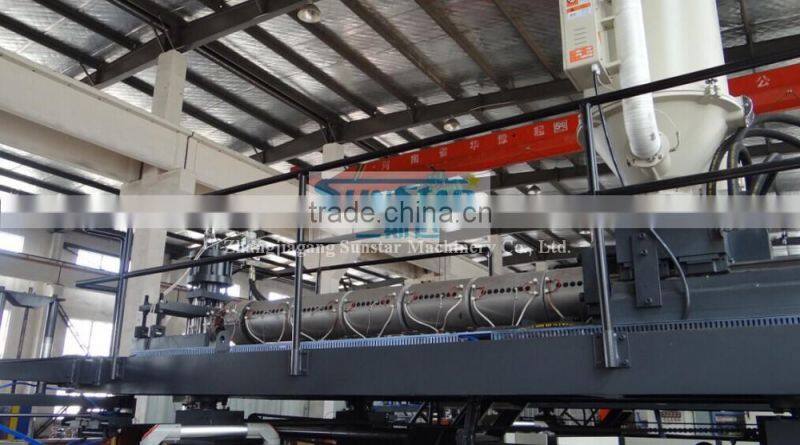

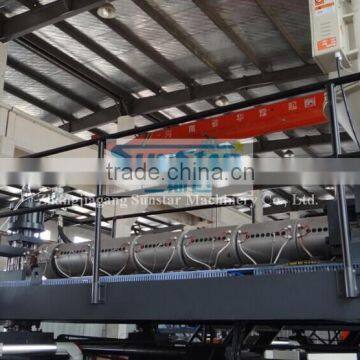

5 gallon PC barrel extrusion blow moulding machine screw

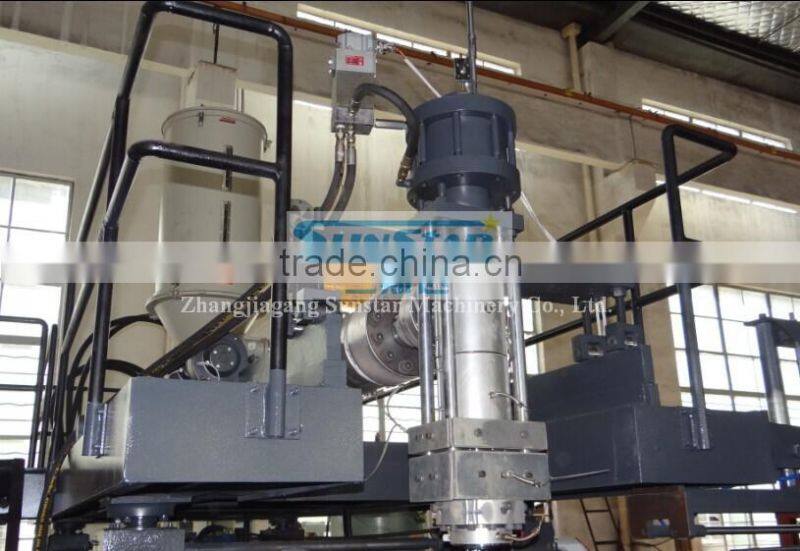

5 gallon PC barrel extrusion blow moulding machine die head

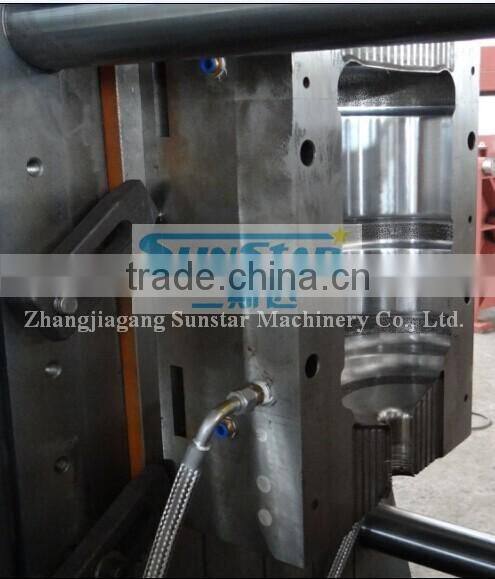

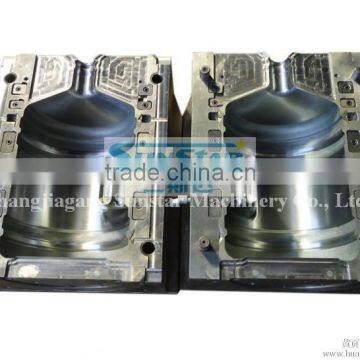

5 gallon PC barrel extrusion blow moulding machine mould

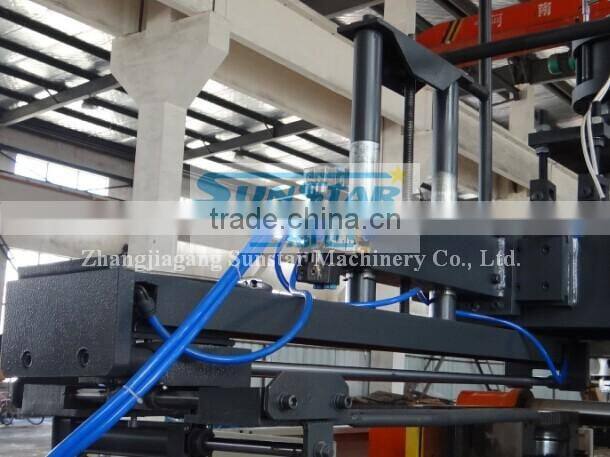

5 gallon PC barrel extrusion blow moulding machine machine hand

....
