Home > Products > Bottle blowing machine > Semi-automatic bottle blowing machine for PET bottles
Semi-automatic bottle blowing machine for PET bottles
- 50 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Bottle, Bottle,Beverage bottle, mineral water bottle, carbonated drink bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Other, Semi-Automatic | Place of Origin | Jiangsu, China | |
| Brand Name | sunstar | Model Number | ZSJ | |
| Voltage | 220V/380V / 450V, or according to customer's requirment | Power(W) | 17500w | |
| Dimension(L*W*H) | 1600x600x1610mm | Weight | 1550kg | |
| Certification | ISO 9001:2000, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Semi-automatic bottle blowing machine for PET bottles is suitable for producing PET plastic containers and bottles.Semi-automatic bottle blowing machine for PET bottles
Specifications
Semi-automatic bottle blowing machine for PET bottles
1.from PET granule to PET bottle
2.Blow moulding machine
3.Semi-automatic type
4.Volume 0.1L-2L
5.ISO9001,CE

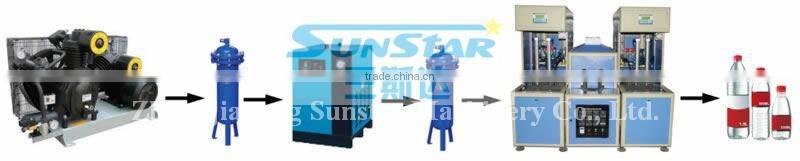

Semi-automatic bottle blowing machine for PET bottles includes preheating machine, blower, air compressor, and moulds for bottle making.
Semi-automatic bottle blowing machine for PET bottles introducton:
Semi-automatic bottle blowing machine for PET bottles is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water bottle, carbonated drink bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The Semi-Automatic PET Bottle Blowing Machine is small with low investment, easy and safe to operate.
Semi-automatic bottle blowing machine for PET bottles Function:
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers.
7. Easily operated, need only one person, no need special training.
Semi-automatic bottle blowing machine for PET bottles Main Parameters:
Container | Product material | PET |
Volume | 0.1L-2L | |
Theoretical output | 1200-1600PCS/H | |
Preform length | 15mm-350mm | |
Preform inner diameter | φ5mm-38mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 160mm | |
Machine size and weight | Main machine (L x W x H) | 160x60x161KM |
Main machine weight | 500Kg | |
Heater (L x W x H) | 187x63x145KM | |
Heater weight | 250Kg | |
Power | 17.5kw |
Flow chart:Semi-automatic bottle blowing machine for PET bottles
Company name: Zhangjiagang Sunstar Machinery Co., Ltd.
Add: Leyu industrial zone, Zhangjiagang City, Jiangsu Province, China.
Contact Person: Ms.Alice
Tel:+86-512-58660693
Mobile:+86-13962211535
Skype:yali858
