Automatic Water Bottle Making Machine

 Automatic water bottle making machine

1. Capacity: 1500-2000bottles per hour

2. Bottle material: PET

3. Bottle volume: 220-2200ml

4. Bottle blowing machine: Automatic type

5. Cavity: 2

6. Bottle type: water, juice, carbonated drink, oil etc

 Automatic water bottle making machine

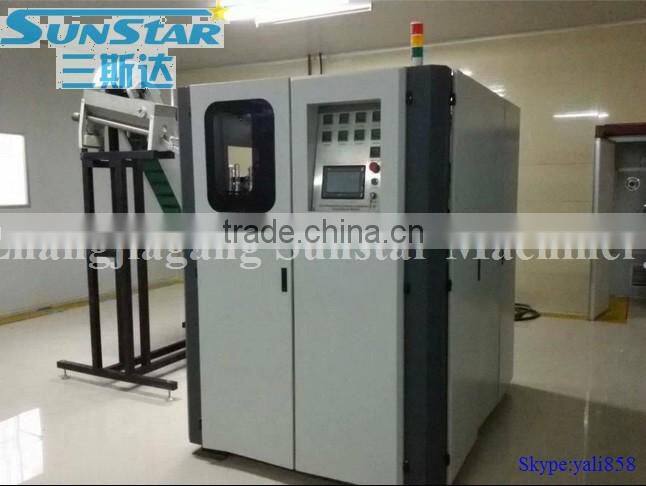

The automatic bottle blowing machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Features of main body:

 1). Stable performance with advanced PLC.

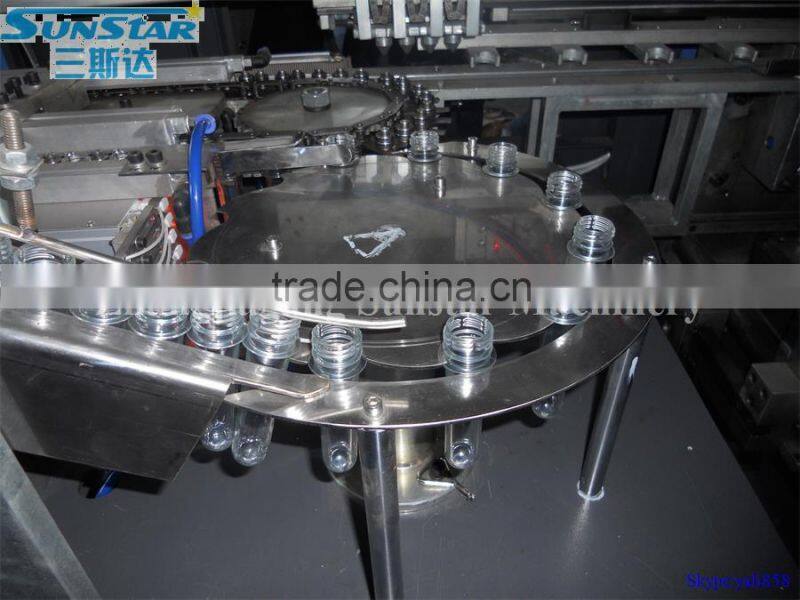

2). Automatic preform conveyer to save human cost.

 3). Preform autorotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

 5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

6). Introduce the FESTO air cylinder to avoid contamination and noise.

7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

 8). Strong clamping force with high pressure and double crank links to lock the mould.

9). Two ways of operating: automatic and manual.

10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

11). Low costhigh efficiencyeasy operation and maintenance etc, profited from the fully automatic technological process.

12). Ideal cooling system make the finished bottles without any flaws.

13). Easy for you to installtest and start up.

14). Low rejection rate: less than 0.2 percent.

Technical parameter:

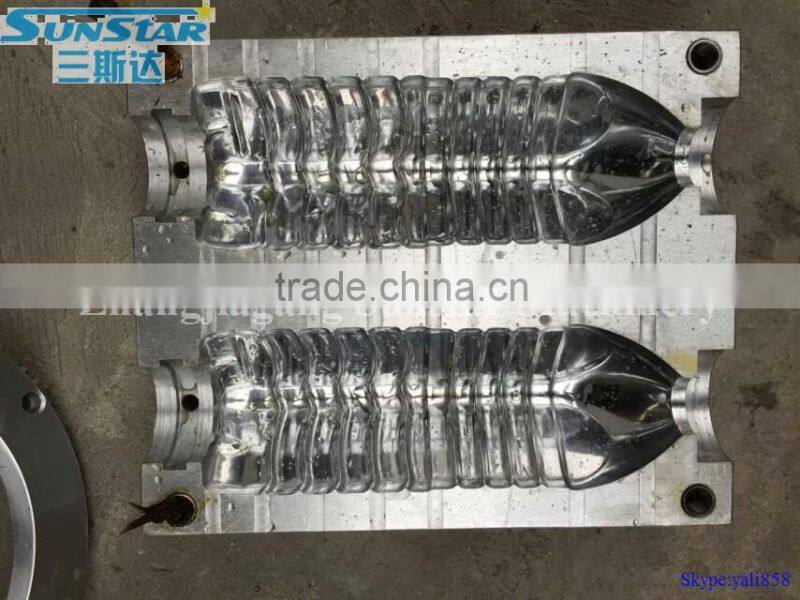

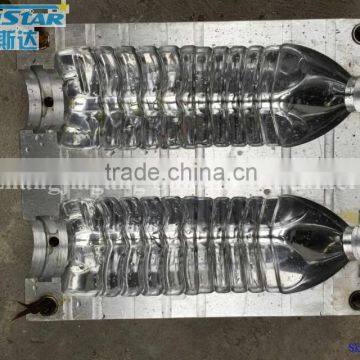

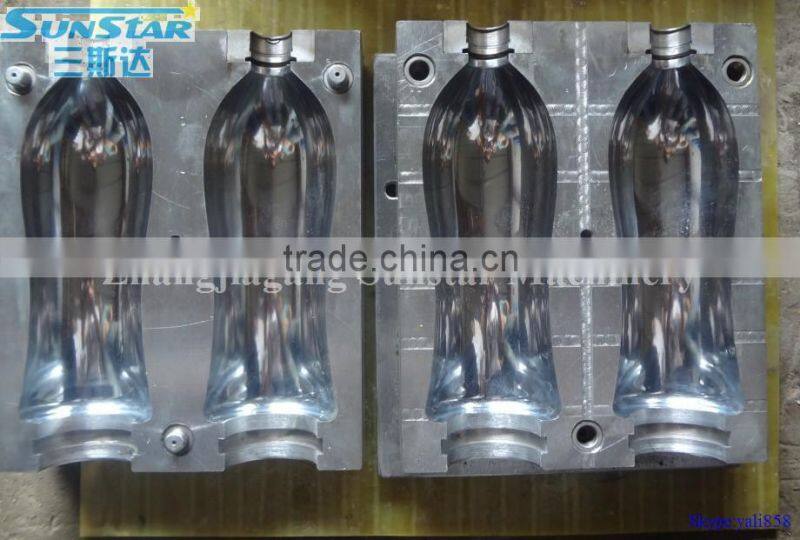

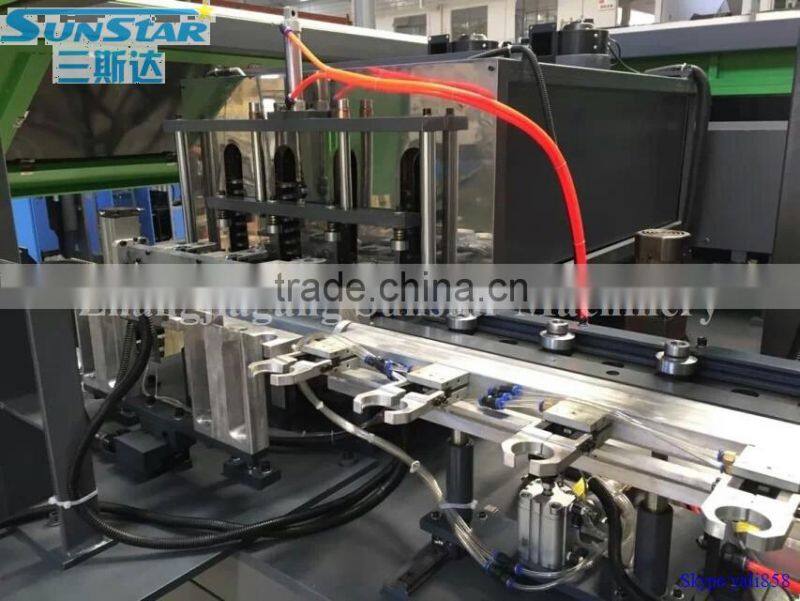

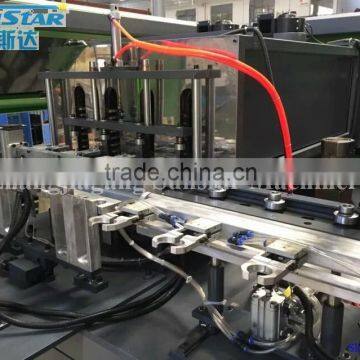

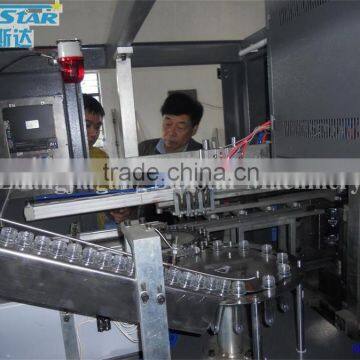

Detail photos:

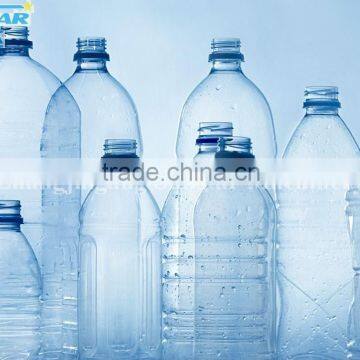

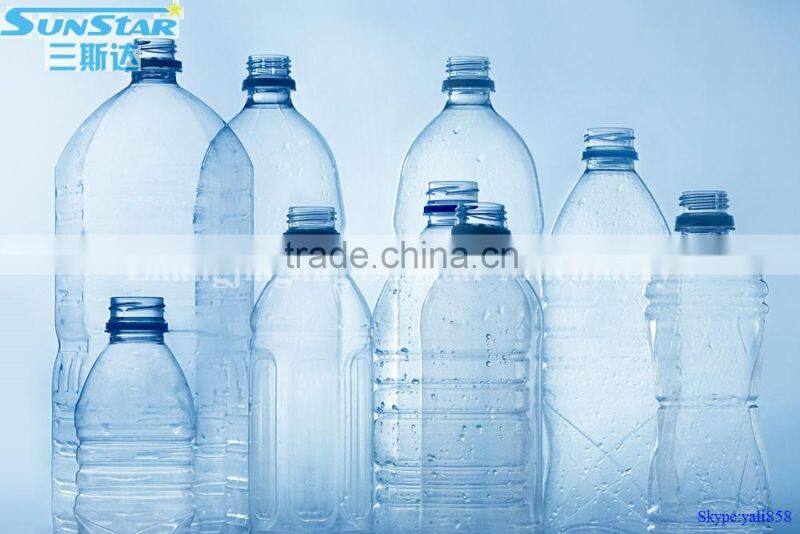

200-2500ml PET bottle
