LINK-MI LM-SC5210C SD/HD/3G SDI to HDMI Converter Box Support 1080p@24/60Hz
- Shenzhen
- Credit Card PayPal
You May Like
-
LINK-MI LM-HA02 HDMI Audio Extractor With Digital SPDIF & Coax Output
-
LINK-MI LM-SP142E-HD4K2K HDMI TV Splitter 1 In 2 Out With EDID Support 3D, 4Kx2K
-
LINK-MI LM-SP142E-HD4K2K Audio Video HDMI TV Splitter 1x2 Support Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0)
-
LM-HD402 Ultra 4K HDMI Matrix 4x2 With SPDIF + 3.5mm Audio
-
LINK-MI LM-SP142E-HD4K2K HDMI TV Splitter 1x2 With EDID Support 4Kx2K
-
LM-HD402 Support Full HD 1080P, Full 3D, 4k2k Resolution HDMI Matrix 4x2
Product Details
| Brand Name | LINK-MI | Model Number | LM-SC5210C | |
| Place of Origin | Guangdong, China |
Product Description
Specification
SDI to HDMI Converter
♦ Convert SD/HD/3G SDI to HDMI
♦ Equalized and Re-clocked Loop Output
LINK-MI LM-SC5210C SD/HD/3G SDI to HDMI Converter Box Support 1080p@24/60Hz
Introduction
The SDI to HDMI Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

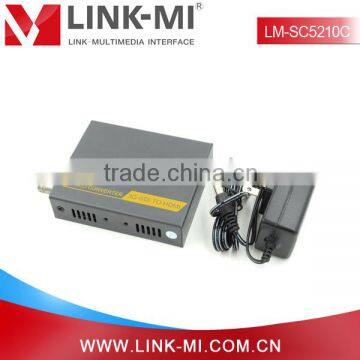

Product Picture
Model No.: LM-SC5210C
Product Type: SDI to HDMI Converter
SDI to HDMI Converter
Features
♦ Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
♦ Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C.
♦ Equalized and re-clocked loop output.
♦ Integrated audio de-embedded for a maximum of 8 channel, 48 kHz audio.
♦ Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.
♦ Connect with other units to extend your signal over long distances.
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
♦ Supports SDI output distance up to 120 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).
Specification
Model No. | LM-SC5210C |
Product Type | HD SDI to HDMI Converter |
Video amplifier bandwidth | 3.4 GHz Max. |
Video Format | 1080p @ 24/60Hz |
Video Color Format | 12 bit Max. |
Input TMDS signal | 1.2 Volts P-P |
Input DDC signal | 5 Volts P-P (TTL) |
HDMI input/output connector | HDMI type A 19Pin |
Link Connector | BNC Shielded |
Power Adapter | DC5V/1A |
Operating temperature range | -40℃ to +70℃ |
Operating humidity range | 5 to 90% RH (no condensation) |
Weight | 0.77kg/pcs |
Dimensions ( L*W*H ) | 11.45*8.2*2.5cm |
Panel Description
Connection and Operation
♦ Connect to multiple displays by linking one 3G SDI Extender to another through its SDI output port. When connected to another 3G SDI Extender, you can broadcast a signal to two HDMI displays and one SDI display, or connect to another Extender to provide more connections and a longer operating distance.
♦ Convert 3G SDI to HDMI
Wiring Diagram
Packing Contents: SDI to HDMI Converter
♦ Main Unit. SDI to HDMI Converter
♦ 1pcs Power Adapter DC 5V 1A
♦ 1pcs User Manual
