500 handheld usb microscope, display images on PC, LED lights intensity adjustable

Specifications

500 handheld usb microscope , display images on PC, LED lights intensity adjustable

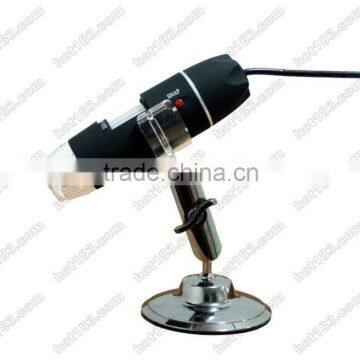

This microscope is a portable, 1.3 megapiel digital microscope that has a USB interface, eight white LED lights with intensity settings, a snapshot button for image capture, optical magnification of 20 to 200, and digital magnification of 500. This digital microscope enhances the resolution of an object or image, and connects to a computer for image display. The microscope body has a rubberized, anti-slip coating for durability. Included software has image (JPEG and BMP) and video (AVI) capture functions; it also contains measure software for measuring the size of object precisely. The microscope comes with an adjustable metal stand that includes height and angle adjustment. It is commonly used for quality control (QC) inspection, medical and scientific research, geology, mineralogy, chemistry, and for printing and tetile inspection.

Teitile and PCB board under 500 microscope

Specification
Image CMOS Sensor

Controller High Speed DSP (Driver Free available)

Focus Range 0mm ~ 40mm

Snap Shot Software and Hardware

Video Capture Resolution: 0.3M.

Built-in 8 White-light LED and adjustable illumination ensure the magnified images are clear and bright

Still Image Capture Resolution 640*480

Frame Rate 30 f/s under 600 LU Brightness

Digital Zoom 5 Sequence Mode

Brightness Control Manual adjustment

Magnification Range 50 ~ 500 (Manually)

Power Supply USB Port ( 5V DC )

USB 2.0 & USB 1.1 Compatible

Operation System Windows P, Vista, Win 7 32 bit and 64 bit.

Language: English, Chinese and other language by selection

System Requirement: Pentium Computer with 700M Hz & above,
20M HD Space CD ROM Driver, 64MB RAM, Direct VGA Card

CD disk Driver and Micro-Measurement Tool

Product dimension 112 mm ( L ) 33 mm ( R )

Product net weight: 380g

Available color: Matting black

Notes before use

1. Non-waterproof

2. Dont clean the Microscope with alcohol organic solvents

Package:

1. Microscope (1pcs)

2 USB 2.0 cable

3 Metal fied Stand (1pcs)

4 CD ROM (Driver, Measurement software, User Manual)
