Home > Products > Communi cables > factory offer UTP cat5 cat5e cat6 ethernet cable

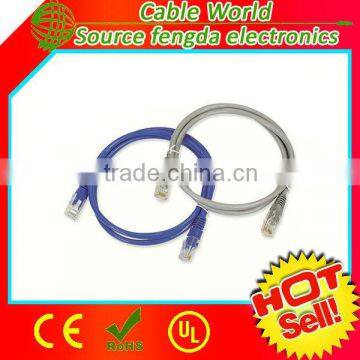

factory offer UTP cat5 cat5e cat6 ethernet cable
- Shenzhen/Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | ethernet cable | |||
| Number of Conductors | 8 |
Product Description
24AWG UTP Cat5 Cat5E 0.5 CCA ethernet cable
Specification:
Conductor | Insulation | Core Number | Drain | Shielded | Jacket | ||||||||||
AWG | Specification (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | |||||||||
26 | 1/0.404 | HD-PE | 0.20 | 4P | 1/0.404TC | AL/Mylar | PVC or LSNH | 0.60 | 5.0 | ||||||
7/0.16 | HD-PE | 0.20 | 4P | 7/0.16TC | AL/Mylar | PVC or LSNH | 0.60 | 5.5 | |||||||
24 | 1/0.511 | HD-PE | 0.20 | 4P | 1/0.511TC | AL/Mylar | PVC or LSNH | 0.60 | 5.8 | ||||||
7/0.203 | HD-PE | 0.20 | 4P | 7/0.203TC | AL/Mylar | PVC or LSNH | 0.60 | 6.0 | |||||||
Description:
1.Specification: 4P+Mylar+D+AL
2.Rated Temperature: 60°C or 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Drain Wire: 26AWG or 24AWG Stranding or Solid Tinned copper
7.Outer Shielded: AL-Mylar 100%(min) coverage
8.Unrip rope: optional
9.Jacket: PVC or LSNH
10.Impedance:100±15%Ω at 1~100MHz
11.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
12.Flame Retardancy Standard: Passed CM or CMR
Features:
1.Al-Foil Shield Reduces the Interference and Data Loss
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
