factory wholesale UTP cat5 cat5e ethernet cable lan cable
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | CAT5e lan cable | |||
| Number of Conductors | 8 |
Product Description
Specifications
UTP CAT5e lan cabledifferent colors optional
length customized
factory offer

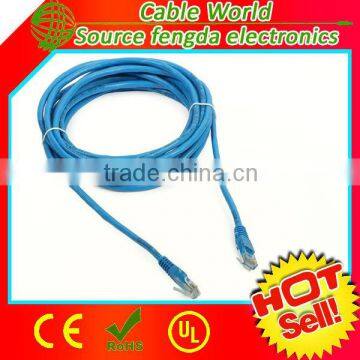

UTP Cat5E ethernet cable lan cable
Specification:
Conductor | Insulation | Core Number | Drain | Shielded | Jacket | ||||||||||
AWG | Specification (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | |||||||||
26 | 1/0.404 | HD-PE | 0.20 | 4P | 1/0.404TC | AL/Mylar | PVC or LSNH | 0.60 | 5.0 | ||||||
7/0.16 | HD-PE | 0.20 | 4P | 7/0.16TC | AL/Mylar | PVC or LSNH | 0.60 | 5.5 | |||||||
24 | 1/0.511 | HD-PE | 0.20 | 4P | 1/0.511TC | AL/Mylar | PVC or LSNH | 0.60 | 5.8 | ||||||
7/0.203 | HD-PE | 0.20 | 4P | 7/0.203TC | AL/Mylar | PVC or LSNH | 0.60 | 6.0 | |||||||
Description:
1.Specification: 4P+Mylar+D+AL
2.Rated Temperature: 60°C or 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Drain Wire: 26AWG or 24AWG Stranding or Solid Tinned copper
7.Outer Shielded: AL-Mylar 100%(min) coverage
8.Unrip rope: optional
9.Jacket: PVC or LSNH
10.Impedance:100±15%Ω at 1~100MHz
11.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
12.Flame Retardancy Standard: Passed CM or CMR
Features:
1.Al-Foil Shield Reduces the Interference and Data Loss
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
