Electric Actuated Stem 6 Inch Gate Valve Price and Drawing
- Tianjin or anyport of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Micro Electric Ball Valve, Motorized Ball Valve
-
Small Electric Ball Valve for Heating and Ventilation
-
Mini Electric Ball Valve/motorized Valve
-
Flow Control Valve High Temperature for Industry Use
-
High Temperature Flow Control Valve for Building Heat Exchanger Application
-
Flow Control Valve for Heat Exchanger Application
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Other, electric | |
| Material | Other, cast iron, cast steel,WCB,stainless steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | DN50-DN600 | |
| Place of Origin | Tianjin, China | Model Number | bell | |
| Brand Name | Bell | Application | General |
Product Description
electric actuated stem 6 inch gate valve price and drawing
Tianjin Bell Automatic Instrument Technology Co., Ltd is the subordinate company of China Bell Automatic Group, has forty years manufacturing and technical experience, is the most professional manufacturer in various control valves, actuators and instruments. Bell Automatic has got the ISO quality certificate, EU CE certificate, various quality certificates and many certificates of honor issued by Chinese government.
Feature
· It’s a linear motion valve, general match with on-off type Multi-turn actuator.
· Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to
turn on and turn off the fluid medium in the pipe.
·Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.

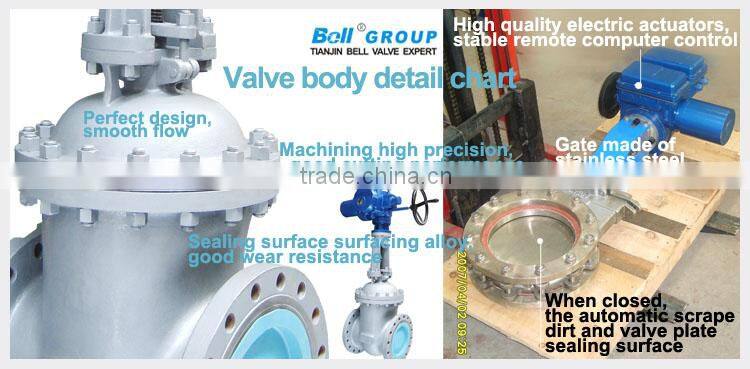

Valve body parameters
design standard | GB/T12234 |
body material | cast steel |
Drive mode | electric |
packing | Asbestos and flexible graphite |
sealing face | alloy steel or hard alloy |
nominal pressure | PN1.6~20.0MPa |
medium | water,oil,steam etc |
temperature | ≤425℃ |

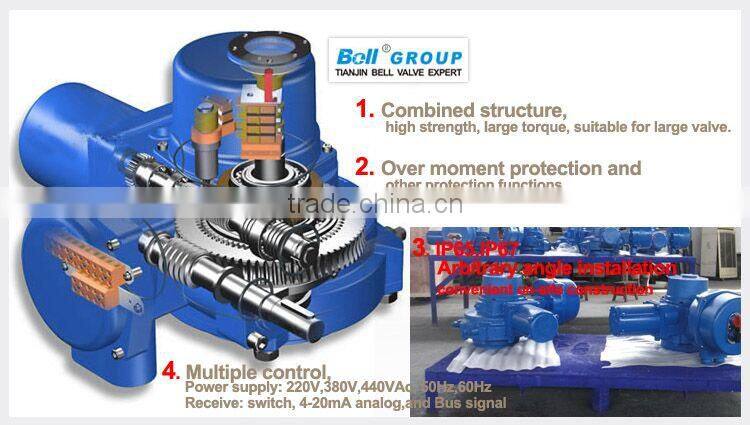

Electric Actuator data:
Voltage: 380V AC
Frequency: 50Hz
Type:On-off/Modulating
Input signal: switching value/4~20mA
Output signal: switching value/4~20mA
Fieldbus: Profibus
Over heat protection
Torque switch / limit switch

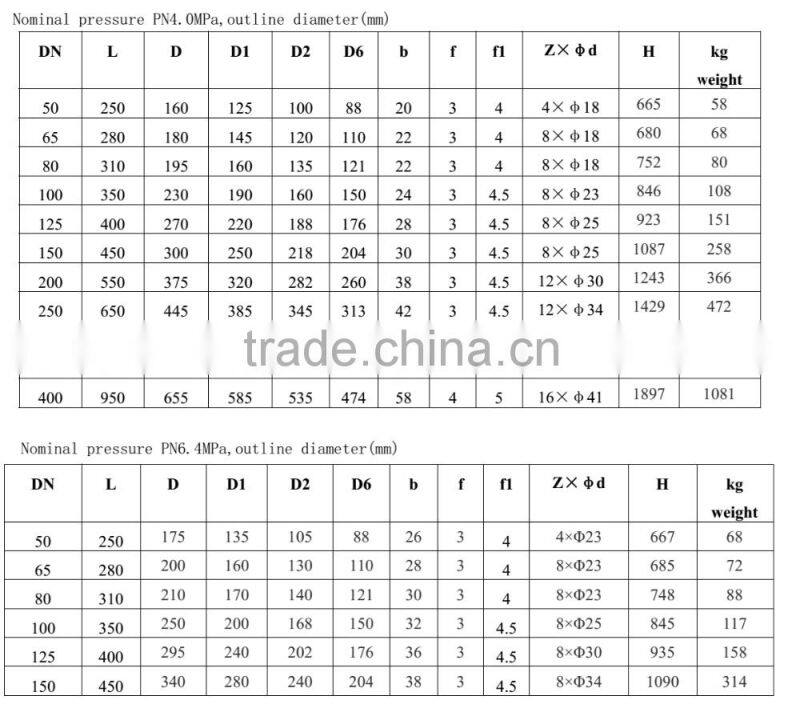

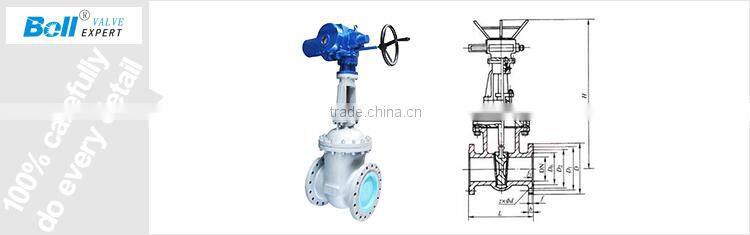

Nominal pressure PN1.6MPa,outline diameter(mm)
DN | L | D | D1 | D2 | b | f | Z×φd | H | kg Weight |
50 | 250 | 160 | 125 | 100 | 16 | 3 | 4×φ18 | 653 | 59 |
65 | 265 | 180 | 145 | 120 | 18 | 3 | 4×φ18 | 665 | 62 |
80 | 280 | 195 | 160 | 135 | 20 | 3 | 8×φ18 | 725 | 74 |
100 | 300 | 215 | 180 | 155 | 20 | 3 | 8×φ18 | 787 | 92 |
125 | 325 | 245 | 210 | 185 | 22 | 3 | 8×φ18 | 902 | 152 |
150 | 350 | 280 | 240 | 210 | 24 | 3 | 8×φ23 | 955 | 161 |
200 | 400 | 335 | 295 | 265 | 26 | 3 | 12×φ23 | 1105 | 219 |
250 | 450 | 405 | 355 | 320 | 30 | 3 | 12×φ25 | 1343 | 376 |
300 | 500 | 460 | 410 | 375 | 30 | 4 | 12×φ25 | 1516 | 484 |
350 | 550 | 520 | 470 | 435 | 34 | 4 | 16×φ25 | 1678 | 695 |
400 | 600 | 580 | 525 | 485 | 36 | 4 | 16×φ30 | 1849 | 977 |
450 | 650 | 640 | 585 | 545 | 40 | 4 | 20×φ30 | 1937 | 1033 |
500 | 700 | 705 | 650 | 608 | 44 | 4 | 20×φ34 | 2234 | 1087 |
600 | 800 | 840 | 770 | 718 | 48 | 5 | 20×φ41 | 2432 | 1357 |
700 | 900 | 910 | 840 | 788 | 50 | 5 | 24×φ41 | 2489 | 1481 |
800 | 1000 | 1020 | 950 | 898 | 52 | 5 | 24×φ41 | 2643 | 1845 |
Nominal pressure PN2.5MPa,outline diameter(mm)
DN | L | D | D1 | D2 | b | f | Z×φd | H | kg weight |
50 | 250 | 160 | 125 | 100 | 20 | 3 | 4×φ18 | 653 | 64 |
65 | 265 | 180 | 145 | 120 | 22 | 3 | 8×φ18 | 665 | 65 |
80 | 280 | 195 | 160 | 135 | 22 | 3 | 8×φ18 | 725 | 79 |
100 | 300 | 230 | 190 | 160 | 24 | 3 | 8×φ23 | 787 | 98 |
125 | 325 | 270 | 220 | 188 | 28 | 3 | 8×φ25 | 902 | 154 |
150 | 350 | 300 | 250 | 218 | 30 | 3 | 8×φ25 | 955 | 160 |
200 | 400 | 360 | 310 | 278 | 34 | 3 | 12×φ25 | 1105 | 168 |
250 | 450 | 425 | 370 | 332 | 36 | 3 | 12×φ30 | 1343 | 390 |
300 | 500 | 485 | 430 | 390 | 40 | 4 | 16×φ30 | 1516 | 505 |
350 | 550 | 550 | 490 | 448 | 44 | 4 | 16×φ34 | 1678 | 736 |
400 | 600 | 610 | 550 | 505 | 48 | 4 | 16×φ34 | 1849 | 1027 |
CE security certificate awarded by EU appointed Britain certificate authority
The ISO9001 quality certification
China famous brand certificate
China AAA level credit enterprise certificate
Tianjin Enterprises Association Member
China quality assurance certificate
The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group
1. How about your price?
Although we are brand-name products, but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2. How long is your warranty ?
Our Warranty is 12 month
3. What’s your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
4. What’s your beneficiary bank?
Our beneficiary bank have :
(1)Alibaba one touch account
(2) Alibaba Trade Assurance account
(3) Bell Group's bank account
(4)Tianjin Bell company bank account
(5)Paypal
(6)Western Union
(7) China's domestic use RMB remittance
Specific accounts can be found on our website.
5. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
6. Do you looking for Agent ?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
