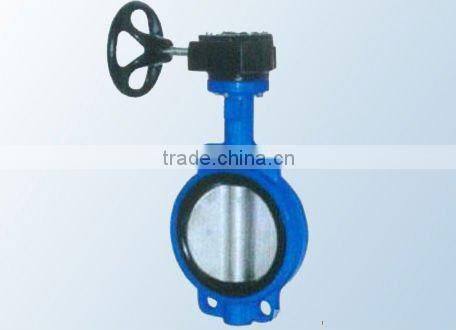

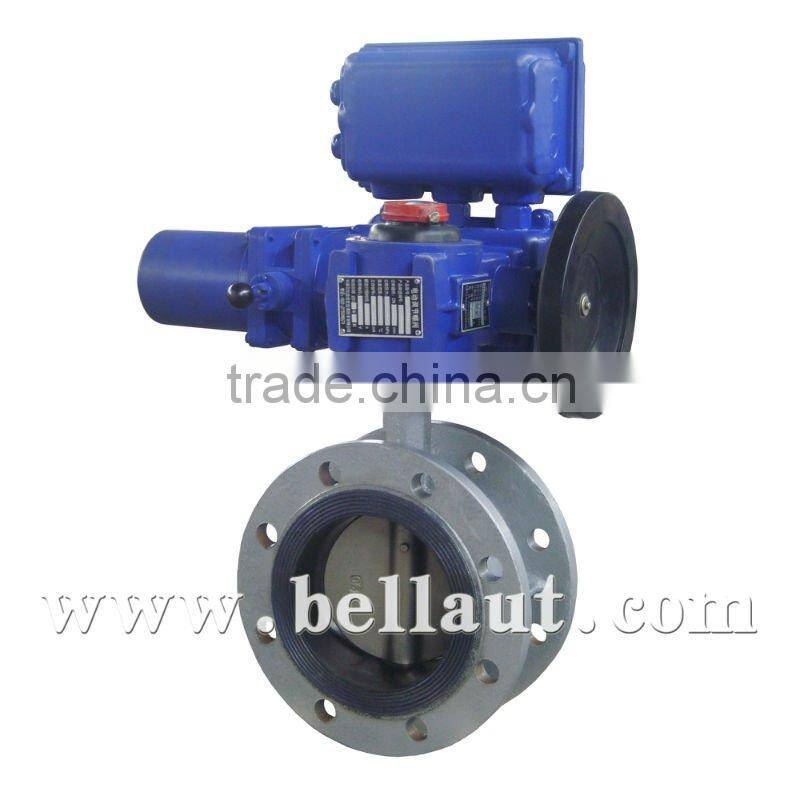

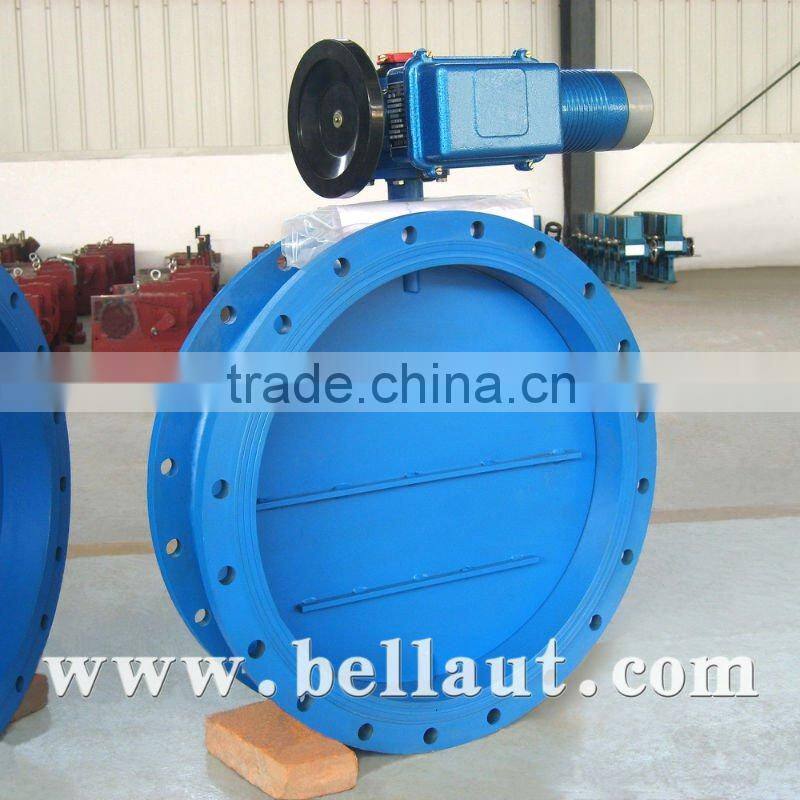

Worm Gear Butterfly Valve With Flange or Wafer
- Tianjin Port China or according to request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | 1-1/2"-40" | |
| Place of Origin | Tianjin, China | Model Number | D7A1X-10, D7A1X-16 | |
| Brand Name | BELL |
Product Description
Specifications
1.Worm Gear Butterfly Valve with flange2.Worm Gear Butterfly Valve with wafer
3.Forty years' production experience
4.ISO,CE
Nominal diameter:
| 40(1/1/2'')—1000(40'')mm 50(2'')—600(24'')mm |
Nominal pressure: | 1.0 MPa ,1.6MPa |
Operating temperature range: | -15—+150°C |
Suitable mediums: | fresh water, sewage, seawater, air, steam, food, medicine, various kind of oils,acids, alkali and salt. |
Worm-actuated Wafer Butterfly Valves:
Nominal diameter: | 50(2”)—600(24”)mm |
Nominal pressure: | 1.0 MPa |
Operating temperature range: | -15—+150°C |
Suitable mediums: | fresh water, sewage, seawater, air, steam, food, medicine, various kind of oils,acids, alkali and salt. |
Features:
1)Small-size, convenient, easy to assemble and disassemble, maintenance, fix at any positions
2)Simple-structure,compact, quick 90 degrees on-off operation, small operating torque, light and handy.
3)More than then thousand times of on-off experiment, longer operating life.
4)Almost linear flow characteristic, better regulating performance.
5)Full sealed, zero gas leakage.
6)Different materials in every parts, suitable to different mediums.
