2014 latest waste tire recycling machine pyrolysis plant with 8-10 ton capacity

Specifications

  The Fully automatic running of pyrolysis plan for recycle waste tire to fuel oil or diesel and gasoline

Founction:

    pyrolysis plant can recycle the waste tyre /rubber/plastic  into Diesel oil with high valued.

1.Raw Meterial can be used for pyrolysis plant:

  A. The materials consists of plastic and rubber such as rubber, waste tyres, and waste rubber soles and so on. The oil production of the tyres beyond dia650mm is around 45%;The oil production of the tyres of the bikes, motorcycles and cars is 35%; The oil production of rubber soles is around 27-33%; The oil production of black rubber is about 35%; The oil production of gum outsole is around 45%.

 B.Plastics: Since there exists great differences between the waste plastics, so the oil production also differs a lot. Generally speaking, it is between 35-85%.

2.The opptional fuel can be choosed for pyrolysis plant running

  1. Wood

  2. Fuel oil (including the production made )

  3.Coal, charcoal

  4.Nutural gas(including the waste gas produced from process)

  5.The carbon black produced from process

3.Products parameters by pyrolysis plant process:

1.The fuel oil extracted from the waste plastics: Density: 0.80±0.02,dark red color, fuel value is 8500kcal.

2. The fuel oil extracted from the waste rubber: Density: 0.90±0.02,black color, fuel value is 10500-10100kcal.

 4.The main parts list in pyrolysis plant:

 Our competitive points in pyrolysis plant parts

     1.outside gear support for reactor which can ensure the reactor was stable during it was running

    2.more than two discharge system which short the discharge time 0.5 hours at least

    3.steam boiler system which can doow down the reactor within 2hours .

    4.extral steam feeding system after finish the whole produce which remove the burn gas in the

      reactor to avoid any fire injurt .it give all of the new user 100% safety .

    5.spares parts for one year running freely

    6.the perfect carbon black discharge system which can make the our work aera was clean

Our competitive points in Distillation parts

1.with reduce pressure during whole process .which will be safety in 120% compared with common pressure .

ntinuous feeding .which can running the plant over 10days without any stopping .

3.no need any catalyst require during process .which can save money cost during daily production .

4.stable process capacity ,and easy to control .

pls refer to below vedio link we supplied to albania .



/v_show/id_XMzgwMzM3NDY0.html

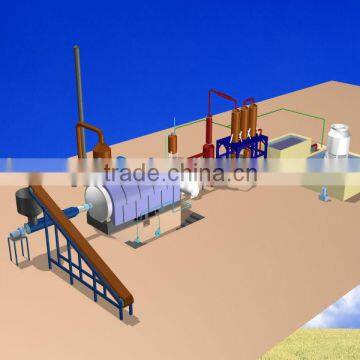

the Drawing for whole production line :
