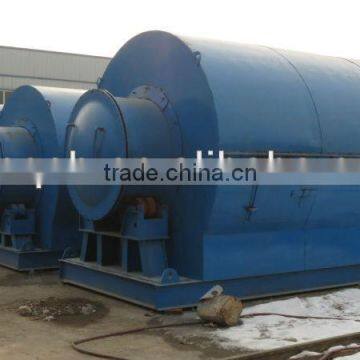

The Biggest Universal Pyrolysis Plant for both Tire and Plastic .

Specifications

Our competitive points

     1.outside gear support for reactor which can ensure the reactor was stable during it was running

    2.more than two discharge system which short the discharge time 0.5 hours at least

    3.steam boiler system which can doow down the reactor within 2hours .

    4.extral steam feeding system after finish the whole produce which remove the burn gas in the

      reactor to avoid any fire injurt .it give all of the new user 100% safety .

    5.spares parts for one year running freely

    6.the perfect carbon black discharge system which can make the our work aera was clean

The Working Process:

1. Directly put the waste tires into pyrolysis reactor by auto feeder or by Munual, then we burned the fuel to hear the reactor ,the fuel can be below according to different market ,even which can be use two kind of the fuel material to get the economic way.

  1. Wood

  2. Fuel oil (including the production made )

  3.Coal, charcoal

  4.Nutural gas(including the waste gas produced from process)

  5.The carbon black produced from process

 The temperature of reactor will be keep increasing up to 220°c-250°c, the oil gas which produced during the temperature increasing go to gas seperator ,the lights gas parts will be  cool down to the liquid oil ,and collected into the final oil tank .meanwhile , the heavy parts goes to heavy oil tank .but in lights gas parts ,there have a few hard parts which can not be cool down liquid oil ,they will be processed by water seal to remove the dangerous parts ,then back to combustion system to heat the reactor instead of raw fuel material .that's mean we can stop to the fuel material when it have the gas produced .this way can save fuel material in great margin .

2.Auto discharge system :

  after finish the process ,run the auto impuse collection machine ,the carbon black poder will be collected in the tank of impuse machine without any flies as those process was done by full closed way .the most important is our auto impuse collection machine not only to transfer the carbon black from reactor automatically ,but also can filter the better carbon black with fine mesh from steel and bigger power .then we can use the fine poder for below industry to get more profits :

1.Electric cable jacketing

  2.Conveyor Band

  3.Hose and Doormat

  4.Black Nylon Bag

  5.Rubber additive

  6.Automative spare parts

  7.Heat isolation

  8.Black Colorant in rubber materials

  9.plastic pipes

 10.Industrial rubber products

 11.Fire Fighting

The oil test report:

The oil Production:

The Raw material with oil recovery:

The Certificate :
