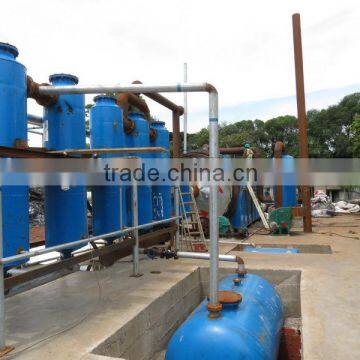

The waste plastic Pyrolysis machine for selling.

Specifications

the waste plastic refinery machine details as below

1.Working process

 First, the raw materials are put into the furnace, then seal the feed inlet then the bottom of the reactor will slowly heat the wastes by coal or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 300-400°C; oil steam will flow through light and heavy components separating device; light component will enter the condenser and meanwhile the residues will be discharged automatically in succession. But the liquefied part will be condensed to rubber oil, and the part that cannot be liquefied will be input into heating supply system for burning by way of combustion gas purification system.

2.the analysis report for crude tyre oil after pyrolysis plant,

Analysis                                               Unit                   Method                             Results

copper corrosion 3hr@50°C                                      ASTM D130-04el               1a

Sulfur                                                   %(m/m)          ASTM D2622-10                 0.593

Kinematic Viscosity@40°C                 mm²/s            ASTM D445-09                   4.037

Conradson Carbon Residue               %(m/m)          ASTM D189-06e2                0.3

 Water content                                     %(m/m)           ASTM D1744-92(WITH      0.145

                                                                                         DRAWN2000)

Ash                                                       %(m/m)           ASTM D482-07                   0.006

Sediment by Extraction                        %(m/m)          ASTM D473-07                    0.01

Caloric values(Gross)                           MJ/kg              ISO 8217-2010(Annex E)   45.05

Caloric Values(Net)                               MJ/kg              ISO 8217-2010(Annex E)   42.01

which oil are generally used as fuel material in power plant,glass factory,cement factory,ceramic factory,aluminum factory,boiler factory,central heating factory,painting factory etc.

3.Treatment of the residues

There are normally 3 kind of residues-exhausted gas, water liquid, waste solid,

1. Exhaust gas - By the means of full combustion in water seal and gas burner, the pollution of exhaust gas shall be eliminated and a large amount of fuel shall be saved. Also dust collector will be used to discharge the smoke and dust, and the discharge of the smoke and dust meets the related standards in 2001.

2. Waste liquid - Faintly acid waste water will be produced in the process of treatment of oil products, after neutralization by adding faintly alkaline liquor, the neutral waste water shall be harmless to three- grade filtration and can be discharged into special evaporation processor to vapor.

3. Waste solid - the solid left is carbon black, no solid waste left.

4.the waste refinery machine can take full advantages of waste as the lackage of oil was very serious day by day .
