Professional Team for continuous used tyre oil refinery machine

Specifications

Professional Team for continuous used tyre oil refinery machine

Raw material :

waste/used tyre,waste/used plastics,(included plastic bottles,plastic boxes,and all the plastic accessories),waste/used rubber(rubber soles and other rubber accessories)

Wrking process:

firstly:two or three worker put the raw material into the furnace, seal the feed inlet.then burn the coal /wood in the botton of the furnace ,or  be heated by electricity directly.and the bottom of the reactor will slowly heat the waste raw material .when the temperature reach of 250°C-280°C,we will get the crude oil ,the oil steam will be produced untill the temperature reach to 300°C-400°C.

and then the oil steam will be separate to light and heavy component by separate divice.the light component will be entre to the condenser and meanwhile the residues will be discharged automatically in succession.after the condenser ,the liquefied part will be crude oil ,and the waste gas (it is mean that that part can not be liquified )will be return to heating supply system for burning by the way of combustion gas purification system.

the details of the plant

    name                                                    specification   quantity

1.  main furnace                                        2.2M*6M         1set

2.  base of the furnace shell insulation                             1set

3. row tube condensing system                                        1set

4. oil water separator system                                           1set

5.desulfurization and dust removal                                   1set

6.fan                                                                                  1set

ucer                                                     4kw                2set

8.oil gas exclusion                                                             1set

9.stream tower                                                                  1set

10.water seal                                                                     1set

11.water pump                                             2.2kw             2set

12.water pump                                              1.5kw            1set

13.heavy oil storage tanker                                                1set

14.residue oil tanker                                                           1set

15.damper                                                                           1set

16.chimney                                                                          1set

17other samll accessories

the best advantage of us plant

our plant refine the waste /plastic /engine oil without any catalyst,there are no second suppliers

can do it in china .

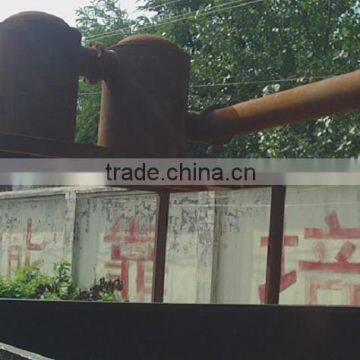

Machinery details show:
