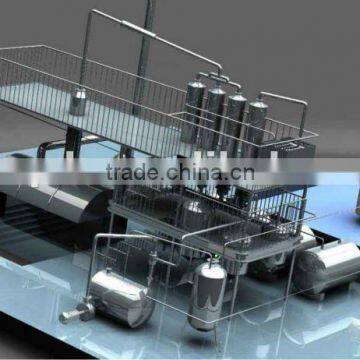

The waste rubber oil distillation plant with negetive pressure to transfer oil into national standard diesel and gasoline

Specifications

1.Components of Equipment

   a,Vertical reactor/Horizontal reactor.

   b,Reducer system.

   c,Condensation system

   d,Collector

   e,Oil collecting tank

   f,Residua tank

   g,Oil-gas separator

   h,Water cooling system

   i,Water seal tank

   j,Pressure,Temperature monitoring gauge

   k,Deodorization system

   l,Efficient anti clog cooling system

   m,Gas heating system (waste gas process system)

   n,Smoke desulphurization and dust removal system

   o,Total area 200 square meter

2. The flow chart of reduce pressure distillation equipment

3.Benefits analysis

   Production raw material cost :(AS our model ZL-7 as sample in market market this year)

The price of crude oil from waste tyre or plastic is RMB4,500/ton

Per day(24hours) capacity is 10tons crude oil is RMB 45,000 .

Other consumption cost :

a.Coal:running 24 hours need 800KG*RMB1000/ton =RMB800

b.Water and electricity:RMB250 per 24hours

c.Two workers's salary per day :RMB50*2=RMB100

d.Eequipment depreciation:=RMB100

e.Taxes:free of charge

f.others=RMB100

g.total:RMB 1,350

Value of product:

A.the cost of national petroleum is RMB 7,600/ton

B.The cost of final oil from our equipment is RMB6,800/ton

C.the convertion of crude oil (from waste tyre ,plastic)is 85%-95%

   The value of product per day is 10tons *90%*RMB6,800=RMB61 200

Gross profit

Day profit:Daily turnover-daily cost =RMB31,200-RMB45,000-RMB1,350=RMB14 850

Monthly profit:RMB14,850*20day =RMB297,000

Annual profit(count by ten months)RMB2,970,000

4.final oil show :

5.Technical Parameters of Dffierent Model
