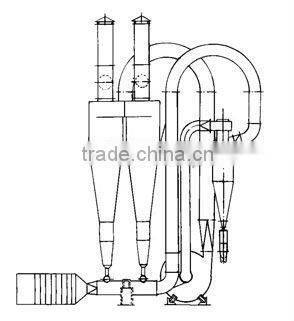

QG,FG Starch Air Flow Dryer

FOB Price

US$ 10,000 - 80,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Air Flow Dryer		Place of Origin	Jiangsu, China
Brand Name	Lemar		Model Number	QG,JG

Product Description

Specifications

QG, JG Air Flow Dryer:
1. Continuous work
2. Large capacity

Scope of application of QG,JG Air Flow Dryer:
The equipment s wide used for drying powder, granule raw materials in foodstuff industry, chemical industry, pharmaceutical industry, construction materials industry, etc. The products that had been used the equipment are as follows: starch, glucose, fish powder, sugar, less, feedstuff, gluten, plastic resin, coal powder, dyestuff, etc.

Principle
The working principle of FG series drier is that the dry of damp raw material will be finished in two steps. First the raw material will be carried the first grade positive pressure dry through the tail air of the second dry and supplement hot air. The used tail air with high temperature and low damp will be exhausted. The semi-finished product will be dried the second grade negative dry through fresh hot air. The dried finished product will be packaged through measure. The used tail air with high temperature and low damp will be used for the first grade dry. In this way the good cycle dry process will be finished. The supplemental hot air amount can be adjusted freely in accordance with needs. So the machine has wide adaptability.

model	evaporated water(KG/H)	power(kw)	occupied area(m²)	thermal efficiency(%)
FG0.25	113	11	3.5×2.5	>70
FG0.5	225	18.5	7×5	>70
FG0.9	450	30	7×6.5	>70
FG1.5	675	50	8×7	>70
FG2.0	900	75	11×7	>70
FG2.5	1125	90	12×8	>70
FG3.0	1150	110	14×10	>70
