YPL Pressure Spray Dryer Granulator

Specifications

Description of YPL Preaaure Spray Dryer Granulator:
This set is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be got in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.

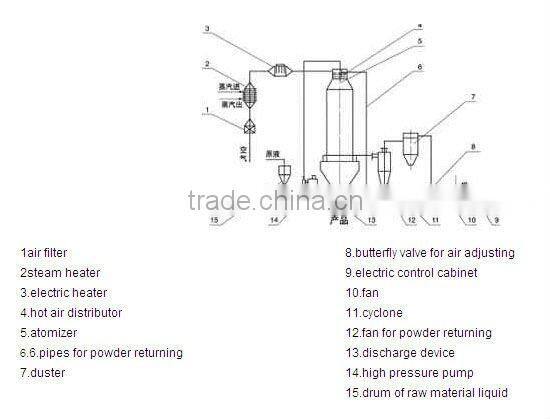

The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery will be 96-98%.
The tower body, pipes and separator of set where will contact with raw material are made of SUS304. There is enough layer of heat preservation between inner and outer case of tower body. The filled material is fine glass cotton. The tower body I also equipped with observation door, sight glass, lamp-house and control meters and instruments that is controlled and displayed through electric control panel.

Application of YPL Pressure Spray Dryer Granulator:
1.Chemical industry: organic catalyst, resin, synthetic washing powder, oils, thiamin, dyestuff, intermediate of dyestuff, white carbon black, graphite, ammonium phosphate and so on.
2.Foodstuff: amino acid and similar substance, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder, extractive substance from meat and so on.
3.Pharmaceutical: Chinese patent medicines, agrochemicals, antibiotics, medical drinking agent and so on.
4.Ceramics: magnesium oxide, kaoline, all kinds of metallic oxide, dolomite and so on.
5.Granulating through atomizing: all kings of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic super hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.

Features of YPL Pressure Spray Dryer Granulator:
1.The drying speed is fast. The surface area of liquid raw material after being atomized will be increased greatly. 95-98% of moisture can be evaporated at a moment. The time of drying needs about ten seconds to several tens of seconds. It is suitable for drying heat sensitive material particularly.
2.The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
3.The scope of application is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
Its operation is simple and stable and convenient and is easy to realize automatic operation.

1.The evaporated amount is related to characteristics of raw material. The evaporated amount listed in the table is related to temperature. The data can be used for reference only
2.The atomizing pressure and model of pump will be equipped in accordance with the amount of raw material to be treated and the size requirement of product.
3.The power of fan should be increased suitably after equipped with cloth bag duster.
