High quality and good price marking XJK floatation machine
- Xingang seaport China
- T/T Credit Card
You May Like
-
CTS model mine magnetic separator for magnetic ore dressing
-
ISO good quality liquid cyclone separator for liquid material of various density
-
High quality high crushing rate jaw crusher crushing ores and rocks of middle hardness
-
China made good quality continuous industrial ball mill Dry type and wet type
-
High quality large sized spiral slurry classifier for metal ore dressing procedure by grading ore slurry
-
Crystallizer the core equipment of continuous casting machine
Product Details
Place of Origin | Beijing, China | Brand Name | HPWY | |
Model Number | XJK | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

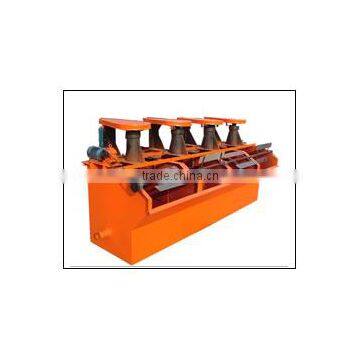

XJK flotation machine is suitable for the separation of nonferrous metals, ferrous metals, precious metals, non-metallic minerals and chemical blank parts and raw materials, through the roughing, scavenging, choice and reverse flotation operation to recover useful minerals.
Technical feature:
XJK flotation machine breathe in high volume, low power consumption. Each tank is of three functions, that is, suction, suction pulp and flotation, and self-made its flotation circuit, without any auxiliary machine tool equipment, horizontal configuration, easy to change in the process. Pulp cycle is reasonable, which can minimize coarse sand deposits. Set self-control device of pulp and it has convenient adjustment. The impeller is with the type of upper and lower blade. The upper blade produce ore pulp upper circulation, the lower produce the lower circulation.
Technical parameter:
Spec. | Effective solvent | Diameter of impellor | Production capacity | Impellor speed | Scraper speed | Mating motor | Dimension | Weight | |
(m3/tank) | (mm) | (m3/min) | (r/min) | (r/min) | Model | Power(kw) | (mm) | (ton/tank) | |
XJK-0.13 | 0.13 | 200 | 0.05~0.16 | 600 | 17.5 | Y90L-4 | 1.5 | 2100×865×900 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12~0.28 | 500 | 17.5 | Y90L-4 | 1.5 | 2625×1130×1290 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.15~0.5 | 470 | 17.5 | Y100L1-4 | 2.2 | 3012×1350×1320 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3~0.9 | 400 | 16 | Y100L2-4 | 3 | 3800×1500×1550 | 0.85 |
XJK-1.1 | 1.10 | 500 | 0.6~1.6 | 330 | 26 | Y100M-6 | 5.5 | 4680×1820×1950 | 1.4 |
XJK-2.8 | 2.80 | 600 | 1.5~3.5 | 280 | 26 | Y160L-6 | 11 | 7750×1600×1700 | 2.43 |
BEIJING HUIPENG WEIYE INDUSTRY & INTERNATIONAL TRADE CO., LTD (HPWY) is a professional international engineering and trade company mainly engaged in project engineering on EPC basis and export of mechanical and electrical equipment as well as their related spare parts especially for metallurgical industry, chemical industry and power industry. HPWY has bunch of joint venture design institute who can offer our clients with great procurement advice and comprehensive project solution.
We could source the most advantaged manufacturers and suppliers around China in the industries like iron & steel making, coking, pelletizing, beneficiation, mining and etc. The offered equipment mainly include cooler, crushing machine, feeding machine, lifting machine, spare parts pumps, valves, refractory, filter bag, coupling, bellows, vessel and etc.
Metallurgical Equipment:
Metallurgical Spare Parts:
We are in position to offer one-stop service and customized service for metallurgical industry, chemical industry, such as ore beneficiation, blast furnace, coal coking, sintering, pellet, coal gasification, environmental protection, titanium dioxide, high titanium slag, and etc.
HPWY has seven joint venture design institutes and dozens of manufacturing partners with long-term cooperation, the strong advantage is our resource integrating ability. We have constructed various of metallurgical and chemical projects in India, Russia, Vietnam, South Africa and Middle East and awarded well reputation from our clients.
Projects reference:
(1) 100,000 TPA Clean Type Heat Recovery Coke Oven Battery
(2) 300m³ Blast Furnace Project for India steel company
(3) 36,000 TPA High Titanium Slag Plant Project
(4) 100 m2 Sintering Plant Project
(5) 1,000,000TPA Shaft Sinking of Iron Mining project
Completion Certificate and Client Comments:
