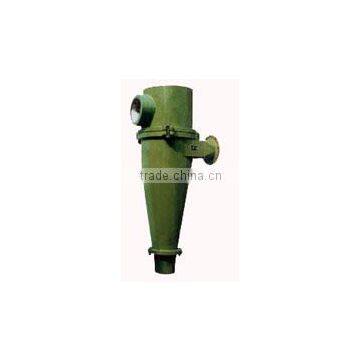

High quality factory price NZX Pressure feeding two products heavy medium cyclone
- Xingang seaport China
- T/T Credit Card
You May Like
-
High quality factory price KZX Air dense medium fluidized bed separator
-
High quality factory price FGX-48 compound dry separator separating slurry coal
-
High quality factory price rotary drying roller drying granular material
-
High efficiency XJM floatation machine separating coal slurry
-
Good quality SF floatation machine for wide range use
-
High quality and good price marking XJK floatation machine
Product Details
Place of Origin | Beijing, China | Brand Name | HPWY | |
Model Number | NZX | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
It can be widely used for separation of Sulphur coal, difficult to choose or extremely difficult.
Technical features:
(1) It is Suitable for old plant modification, for the jigging product (crude coal concentrate or middle coal), the coal concentrate recovery rate can be improved by 3% ~ 5%.
(2) It can be widely used for separation of Sulphur coal, difficult to choose or extremely difficult.
(3) The lower limit for sorting is very low. The effective separation lower limit of the dense medium cyclone with a diameter of 300 mm can be up to 0.044 mm.
(4)Wear-resisting performance is good, and the service life is long, separation precision is high, efficiency is high.
Technical parameters:
Parameter Spec. | Cylinder diameter(mm) | Material feed size(mm) | Level pressure difference (mm) | Installation angle(°) | Handling capacity(t/h) |
NZX1200 | 1200 | ≤100 | 10.0 | 20 | 250~400 |
NZX1000 | 1000 | ≤80 | 8.5 | 20 | 160~280 |
NZX850 | 850 | ≤60 | 7.3 | 20 | 100~180 |
NZX700 | 700 | ≤50 | 6.4 | 20 | 70~120 |
NZX600 | 600 | ≤40 | 5.5 | 20 | 50~75 |
NZX500 | 500 | ≤25 | 4.5 | 20 | 40~60 |
NZX350 | 350 | ≤13 | 3.5 | 20 | 25~45 |
NZX300 | 300 | ≤10 | 2.6 | 20 | 15~30 |
NZX250 | 250 | ≤8 | 2.0 | 20 | 10~20 |
NZX200 | 200 | ≤6 | 1.8 | 20 | 8~15 |
NZX150 | 150 | ≤3 | 1.5 | 20 | 5~10 |
